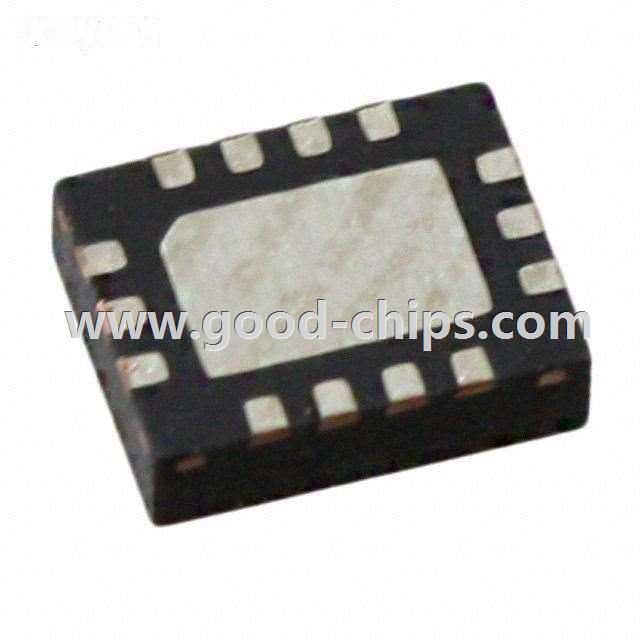

Manufacturer Part Number: | ASEMCLV-T3 |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Pin Configurable Oscillators |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 74.17582MHz, 74.25MHz, 148.35165MHz, 148.5MHz LVDS MEMS (Silicon) Pin Configurable Oscillator 14-VFQFN Exposed Pad 2.25 V ~ 3.6 V 32mA Enable/Disable |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ASEMCLV-T3 Datasheet |
Internal Part Number | 898-ASEMCLV-T3 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | ASEMCLV.pdf ASEMCLV.stp | |
Category | Crystals and Oscillators | |
Family | Pin Configurable Oscillators | |
Manufacturer | Abracon LLC | |
Series | Pure Silicon™ ASEMCLV | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | MEMS (Silicon) | |
Frequency - Output 1 | 74.17582MHz, 74.25MHz, 148.35165MHz, 148.5MHz | |
Frequency - Output 2 | - | |
Function | Enable/Disable | |
Output | LVDS | |
Voltage - Supply | 2.25 V ~ 3.6 V | |
Frequency Stability | ±50ppm | |
Operating Temperature | -20°C ~ 70°C | |
Current - Supply (Max) | 32mA | |
Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
Height | 0.035" (0.90mm) | |
Package / Case | 14-VFQFN Exposed Pad | |
Current - Supply (Disable) (Max) | 23mA | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ASEMCLV-T3 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ASEMCLV-T3 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ASEMCLV-T3 is new and unused, you can buy ASEMCLV-T3 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASEMCLV-T3.
