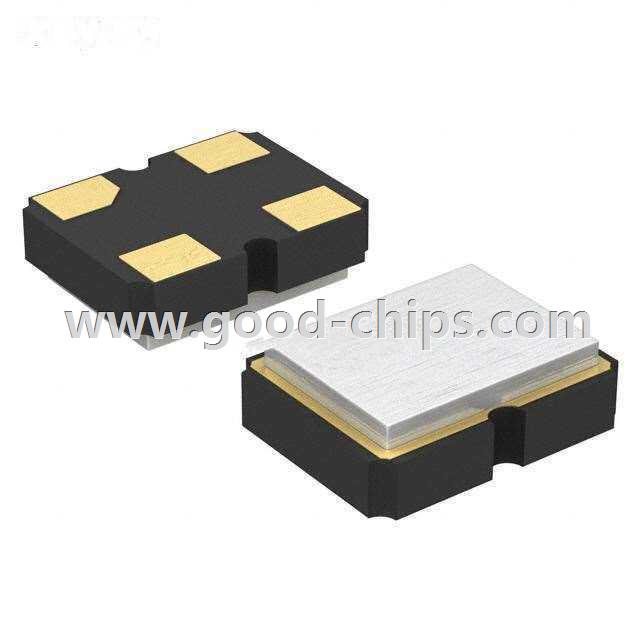

| Manufacturer Part Number: | ASE2-20.000MHZ-ET |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Oscillators |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 20MHz CMOS XO (Standard) Oscillator Surface Mount 2.5V 8mA Standby (Power Down) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ASE2-20.000MHZ-ET Datasheet |
| Internal Part Number | 898-ASE2-20.000MHZ-ET | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | ASE2.pdf ASE2.stp | |
| Online Catalog | ASE2 Series | |
| Category | Crystals and Oscillators | |
| Family | Oscillators | |
| Manufacturer | Abracon LLC | |
| Series | ASE2 | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | XO (Standard) | |
| Frequency | 20MHz | |
| Function | Standby (Power Down) | |
| Output | CMOS | |
| Voltage - Supply | 2.5V | |
| Frequency Stability | ±100ppm | |
| Operating Temperature | -20°C ~ 70°C | |
| Current - Supply (Max) | 8mA | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.126" L x 0.098" W (3.20mm x 2.50mm) | |
| Height | 0.047" (1.20mm) | |
| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Current - Supply (Disable) (Max) | 10µA | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ASE2-20.000MHZ-ET | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ASE2-20.000MHZ-ET is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ASE2-20.000MHZ-ET is new and unused, you can buy ASE2-20.000MHZ-ET Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASE2-20.000MHZ-ET.
