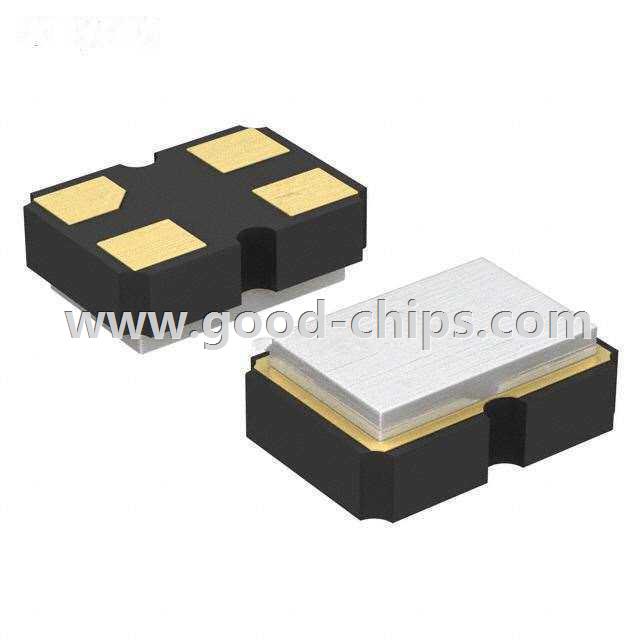

| Manufacturer Part Number: | ASD3-26.000MHZ-LR-T |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | Oscillators |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 26MHz HCMOS XO (Standard) Oscillator Surface Mount 1.8V 4mA Enable/Disable |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ASD3-26.000MHZ-LR-T Datasheet |
| Internal Part Number | 898-ASD3-26.000MHZ-LR-T | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | ASD.pdf ASD.stp | |
| Category | Crystals and Oscillators | |
| Family | Oscillators | |
| Manufacturer | Abracon LLC | |
| Series | ASD | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | XO (Standard) | |
| Frequency | 26MHz | |
| Function | Enable/Disable | |
| Output | HCMOS | |
| Voltage - Supply | 1.8V | |
| Frequency Stability | ±25ppm | |
| Operating Temperature | -40°C ~ 85°C | |
| Current - Supply (Max) | 4mA | |
| Ratings | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
| Height | 0.039" (1.00mm) | |
| Package / Case | 4-SMD, No Lead (DFN, LCC) | |
| Current - Supply (Disable) (Max) | 20µA | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ASD3-26.000MHZ-LR-T | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ASD3-26.000MHZ-LR-T is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ASD3-26.000MHZ-LR-T is new and unused, you can buy ASD3-26.000MHZ-LR-T Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ASD3-26.000MHZ-LR-T.
