| Manufacturer Part Number: | AS5510-WL_EK_DB |
|---|---|
| Manufacturer: | ams |
| Product Category: | Evaluation Boards - Sensors |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |

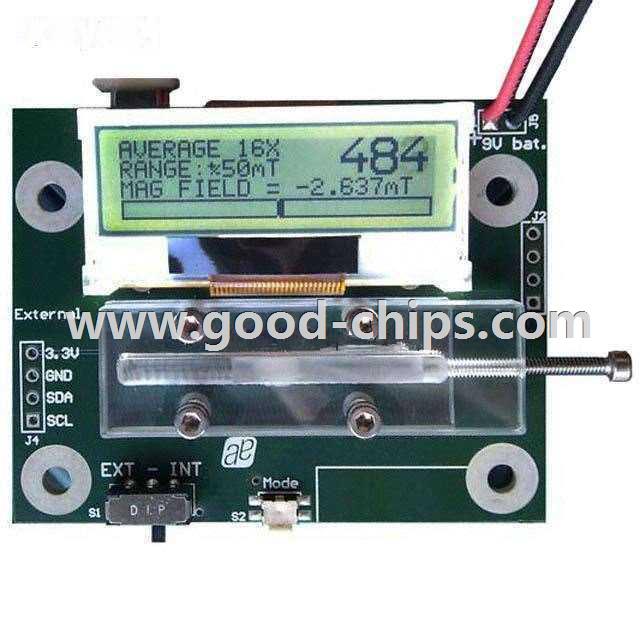

| Description: | AS5510 - Magnetic, Linear Position Sensor Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AS5510-WL_EK_DB Datasheet |
| Internal Part Number | 898-AS5510-WL_EK_DB | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Shaping the world with sensor solutions | |
| Design Resources | Development Tool Selector | |
| Featured Product | AS5510 Linear Sensor | |
| Online Catalog | AS5510 Demo Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - Sensors | |
| Manufacturer | ams | |
| Series | - | |
| Part Status | Active | |
| Sensor Type | Magnetic, Linear Position | |
| Sensing Range | - | |
| Interface | I²C | |
| Sensitivity | - | |
| Voltage - Supply | 5V USB or 9V | |
| Embedded | Yes, MCU, 8-Bit | |
| Supplied Contents | Board | |
| Utilized IC / Part | AS5510 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AS5510-WL_EK_DB | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AS5510-WL_EK_DB is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS5510-WL_EK_DB is new and unused, you can buy AS5510-WL_EK_DB ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS5510-WL_EK_DB.
