| Manufacturer Part Number: | AS5510-DWLM |
|---|---|
| Manufacturer: | ams |
| Product Category: | Magnetic Sensors - Linear, Compass (ICs) |
| Available Quantity: | 16010 Pieces |
| Unit Price: | Quote by Email |
| Description: | IC ENCODER LINEAR 6-CSP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AS5510-DWLM Datasheet |
| Internal Part Number | 898-AS5510-DWLM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Shaping the world with sensor solutions Magnetic Stray Field Immunity | |
| Featured Product | AS5510 Linear Sensor | |
| PCN Assembly/Origin | Site Chg 07/Jan/2016 | |
| Online Catalog | AS5510 | |
| Category | Sensors, Transducers | |
| Family | Magnetic Sensors - Linear, Compass (ICs) | |
| Manufacturer | ams | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Linear | |
| Technology | Hall Effect | |
| Axis | Single | |
| Sensing Range | ±50mT | |
| Voltage - Supply | 2.5 V ~ 3.6 V | |
| Current - Supply (Max) | 3.5mA (Typ) | |
| Current - Output (Max) | - | |
| Output Type | I²C | |
| Resolution | 10 b | |
| Bandwidth | - | |
| Operating Temperature | -30°C ~ 85°C (TA) | |
| Features | - | |

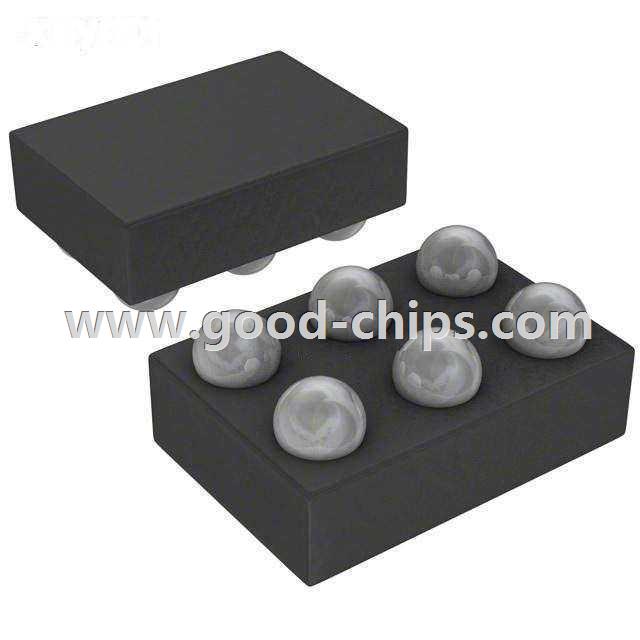

| Package / Case | 6-UFBGA, CSPBGA | |
| Supplier Device Package | 6-WLCSP (1.4x1.1) | |
| Standard Package | 1,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AS5510-DWLM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AS5510-DWLM is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS5510-DWLM is new and unused, you can buy AS5510-DWLM ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS5510-DWLM.
