Manufacturer Part Number: | AS5306/B DB |
---|---|
Manufacturer: | ams |
Product Category: | Evaluation Boards - Sensors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | AS5306/B - Hall Effect Sensor Evaluation Board |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AS5306/B DB Datasheet |
Internal Part Number | 898-AS5306/B DB | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Shaping the world with sensor solutions | |
Design Resources | Development Tool Selector | |
Online Catalog | Linear Encoder Evaluation Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Sensors | |
Manufacturer | ams | |
Series | - | |
Part Status | Active | |
Sensor Type | Hall Effect | |
Sensing Range | 5mT Trip, 60mT Release | |
Interface | - | |
Sensitivity | - | |
Voltage - Supply | 9V | |
Embedded | No | |

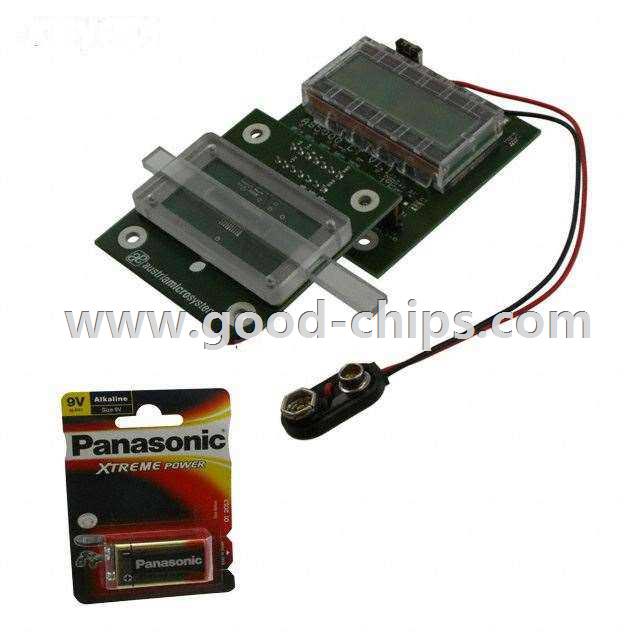

Supplied Contents | 2 Boards, Battery, Fixture, Magnetic Strip | |
Utilized IC / Part | AS5306/B | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AS5306/B DB | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AS5306/B DB is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS5306/B DB is new and unused, you can buy AS5306/B DB ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS5306/B DB.
