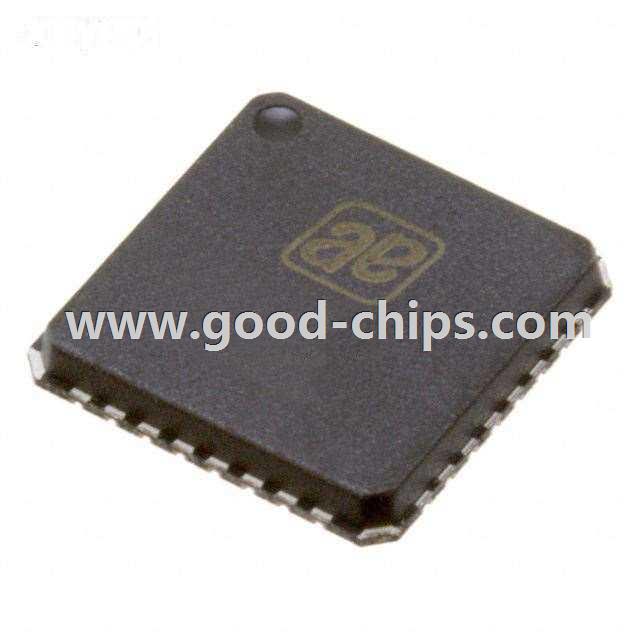

| Manufacturer Part Number: | AS5263-HQFM |
|---|---|
| Manufacturer: | ams |
| Product Category: | Position Sensors - Angle, Linear Position Measuring |
| Available Quantity: | 11010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Hall Effect Sensor Angle External Magnet, Not Included SMD (SMT) Tab |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AS5263-HQFM Datasheet |
| Internal Part Number | 898-AS5263-HQFM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | AS516x and AS526x Magnetic Rotary Position Sensors for Automotive Applications | |
| Video File | Shaping the world with sensor solutions Magnetic Stray Field Immunity | |
| Featured Product | AS5161 and AS5262 Magnetic Position Sensors | |
| PCN Assembly/Origin | Assembly Site Transfer 28/Apr/2014 Assembly Site Revision 04/Feb/2015 | |
| Online Catalog | AS5263 | |
| Category | Sensors, Transducers | |
| Family | Position Sensors - Angle, Linear Position Measuring | |
| Manufacturer | ams | |
| Series | - | |
| Part Status | Active | |
| For Measuring | Angle | |
| Technology | Hall Effect | |
| Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous | |
| Linear Range | - | |
| Output | Analog Voltage, PWM | |
| Output Signal | - | |
| Actuator Type | External Magnet, Not Included | |
| Linearity | - | |
| Resistance (Ohms) | - | |
| Resistance Tolerance | - | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Mounting Type | Surface Mount | |
| Termination Style | SMD (SMT) Tab | |
| Operating Temperature | -40°C ~ 150°C | |
| Standard Package | 500 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AS5263-HQFM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AS5263-HQFM is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS5263-HQFM is new and unused, you can buy AS5263-HQFM ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS5263-HQFM.
