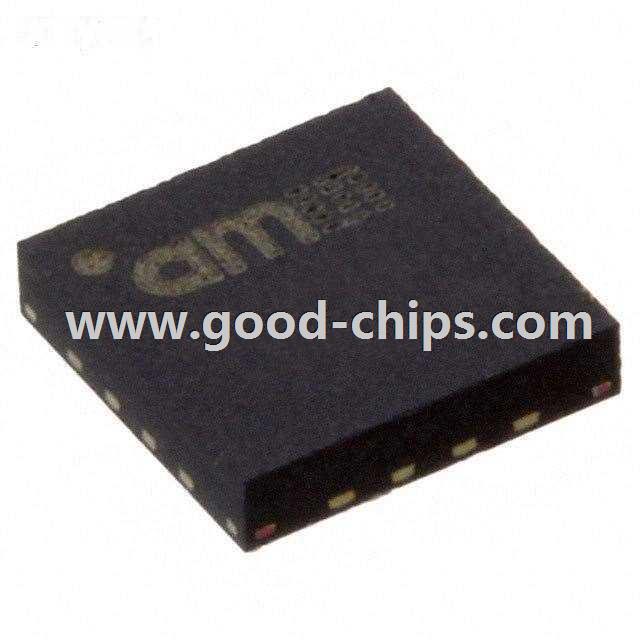

Manufacturer Part Number: | AS5055A-BQFM |
---|---|
Manufacturer: | ams |
Product Category: | Position Sensors - Angle, Linear Position Measuring |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Hall Effect Sensor Angle External Magnet, Not Included SMD (SMT) Tab |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AS5055A-BQFM Datasheet |
Internal Part Number | 898-AS5055A-BQFM | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Shaping the world with sensor solutions Magnetic Stray Field Immunity | |
Online Catalog | AS5050A | |
Category | Sensors, Transducers | |
Family | Position Sensors - Angle, Linear Position Measuring | |
Manufacturer | ams | |
Series | - | |
Part Status | Active | |
For Measuring | Angle | |
Technology | Hall Effect | |
Rotation Angle - Electrical, Mechanical | 0° ~ 360°, Continuous | |
Linear Range | - | |
Output | SPI | |
Output Signal | - | |
Actuator Type | External Magnet, Not Included | |
Linearity | ±1.41° | |
Resistance (Ohms) | - | |
Resistance Tolerance | - | |
Voltage - Supply | 3 V ~ 3.6 V | |
Mounting Type | Surface Mount | |
Termination Style | SMD (SMT) Tab | |
Operating Temperature | -40°C ~ 85°C | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AS5055A-BQFM | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AS5055A-BQFM is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS5055A-BQFM is new and unused, you can buy AS5055A-BQFM ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS5055A-BQFM.
