Manufacturer Part Number: | AS5030-TS_EK_DB |
---|---|
Manufacturer: | ams |
Product Category: | Evaluation Boards - Sensors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

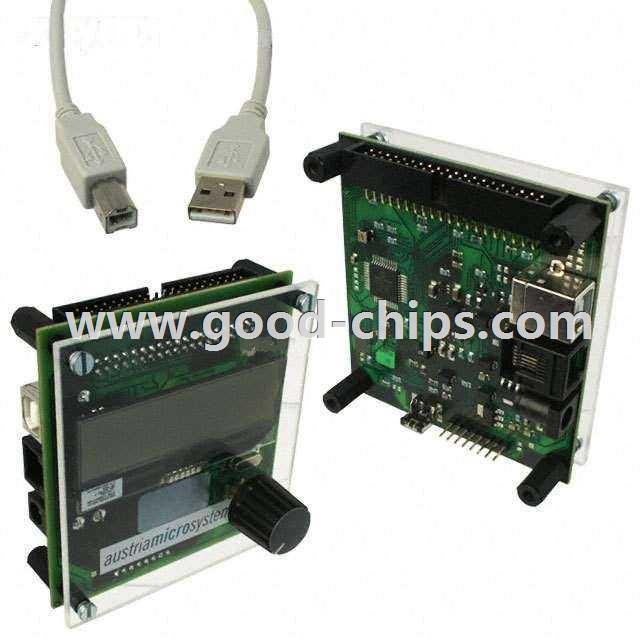

Description: | AS5030 - Magnetic, Rotary Position Sensor Evaluation Board |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AS5030-TS_EK_DB Datasheet |
Internal Part Number | 898-AS5030-TS_EK_DB | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Shaping the world with sensor solutions | |
Design Resources | Development Tool Selector | |
Online Catalog | Rotary Encoder Evaluation Boards | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Sensors | |
Manufacturer | ams | |
Series | - | |
Part Status | Active | |
Sensor Type | Magnetic, Rotary Position | |
Sensing Range | 360° | |
Interface | USB | |
Sensitivity | - | |
Voltage - Supply | 5V USB or 7.5V | |
Embedded | Yes, MCU, 8-Bit | |
Supplied Contents | Board | |
Utilized IC / Part | AS5030 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AS5030-TS_EK_DB | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AS5030-TS_EK_DB is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS5030-TS_EK_DB is new and unused, you can buy AS5030-TS_EK_DB ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS5030-TS_EK_DB.
