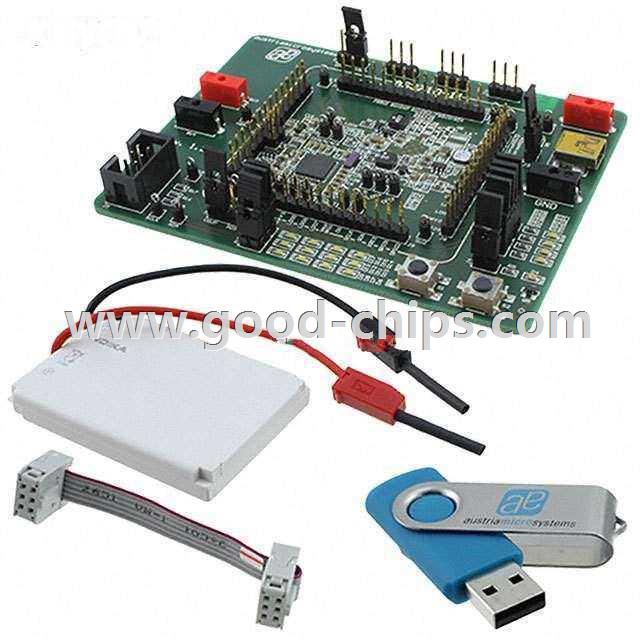

| Manufacturer Part Number: | AS3711 EVAL BOARD |
|---|---|
| Manufacturer: | ams |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AS3711 - DC/DC, Step Up or Down with LDO 14, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AS3711 EVAL BOARD Datasheet |
| Internal Part Number | 898-AS3711 EVAL BOARD | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | ams | |
| Series | - | |
| Part Status | Active | |
| Main Purpose | DC/DC, Step Up or Down with LDO | |
| Outputs and Type | 14, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | - | |
| Current - Output | - | |
| Voltage - Input | 2.7 V ~ 5.5 V | |
| Regulator Topology | Boost, Buck | |
| Frequency - Switching | - | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | AS3711 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AS3711 EVAL BOARD | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AS3711 EVAL BOARD is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS3711 EVAL BOARD is new and unused, you can buy AS3711 EVAL BOARD ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS3711 EVAL BOARD.
