Manufacturer Part Number: | AS1743H-T |
---|---|
Manufacturer: | ams |
Product Category: | Interface - Analog Switches, Multiplexers, Demultiplexers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 2 Circuit IC Switch 1:1 800 mOhm SOT-23-8 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AS1743H-T Datasheet |
Internal Part Number | 898-AS1743H-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 29/Jan/2015 | |
Category | Integrated Circuits (ICs) | |
Family | Interface - Analog Switches, Multiplexers, Demultiplexers | |
Manufacturer | ams | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Switch Circuit | SPST - NO/NC | |
Multiplexer/Demultiplexer Circuit | 1:1 | |
Number of Circuits | 2 | |
On-State Resistance (Max) | 800 mOhm | |
Channel-to-Channel Matching (ΔRon) | 20 mOhm | |
Voltage - Supply, Single (V+) | 1.6 V ~ 3.6 V | |
Voltage - Supply, Dual (V±) | - | |
Switch Time (Ton, Toff) (Max) | 22ns, 14ns | |
-3db Bandwidth | 130MHz | |
Charge Injection | 5pC | |
Channel Capacitance (CS(off), CD(off)) | 35pF, 35pF | |
Current - Leakage (IS(off)) (Max) | 1nA | |
Crosstalk | -100dB @ 1MHz | |
Operating Temperature | -40°C ~ 85°C (TA) | |

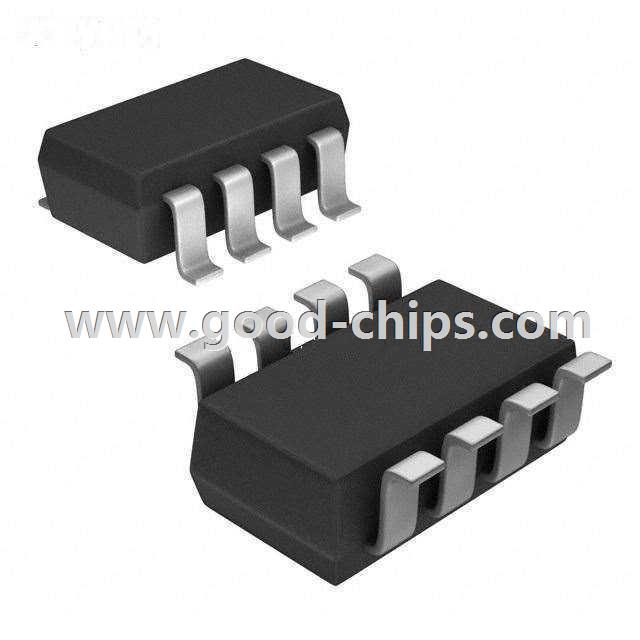

Package / Case | SOT-23-8 | |
Supplier Device Package | SOT-23-8 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AS1743H-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AS1743H-T is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS1743H-T is new and unused, you can buy AS1743H-T ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS1743H-T.
