Manufacturer Part Number: | AS1543-BQFT |
---|---|
Manufacturer: | ams |
Product Category: | Data Acquisition - Analog to Digital Converters (ADC) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 12 Bit Analog to Digital Converter 4, 8 Input 1 SAR 20-TQFN (4x4) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AS1543-BQFT Datasheet |
Internal Part Number | 898-AS1543-BQFT | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Data Acquisition - Analog to Digital Converters (ADC) | |
Manufacturer | ams | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Number of Bits | 12 | |
Sampling Rate (Per Second) | 1M | |
Number of Inputs | 4, 8 | |
Input Type | Differential, Single Ended | |
Data Interface | SPI, DSP | |
Configuration | MUX-S/H-ADC | |
Ratio - S/H:ADC | 1:1 | |
Number of A/D Converters | 1 | |
Architecture | SAR | |
Reference Type | External | |
Voltage - Supply, Analog | 2.7 V ~ 5.25 V | |
Voltage - Supply, Digital | 2.7 V ~ 5.25 V | |
Features | - | |
Operating Temperature | -40°C ~ 85°C | |

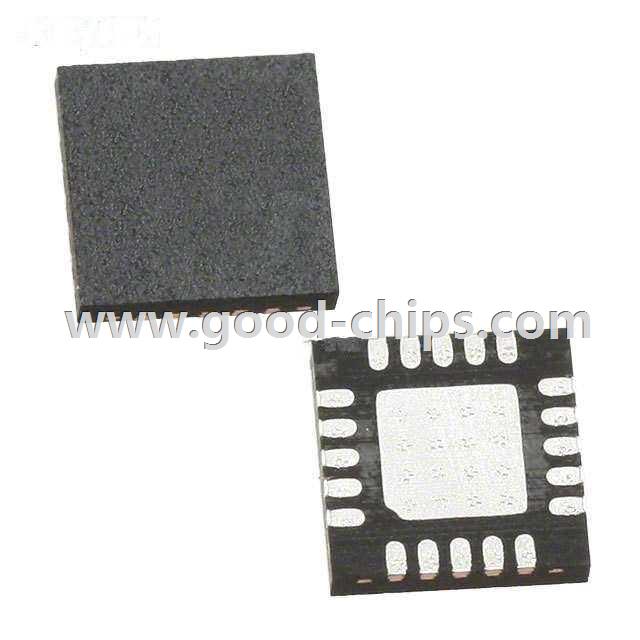

Package / Case | 20-WQFN Exposed Pad | |
Supplier Device Package | 20-TQFN (4x4) | |
Standard Package | 6,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AS1543-BQFT | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AS1543-BQFT is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS1543-BQFT is new and unused, you can buy AS1543-BQFT ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS1543-BQFT.
