Manufacturer Part Number: | AS1520-T |
---|---|
Manufacturer: | ams |
Product Category: | Data Acquisition - Analog to Digital Converters (ADC) |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 10 Bit Analog to Digital Converter 4, 8 Input 1 SAR 20-TSSOP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AS1520-T Datasheet |
Internal Part Number | 898-AS1520-T | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Data Acquisition - Analog to Digital Converters (ADC) | |
Manufacturer | ams | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Number of Bits | 10 | |
Sampling Rate (Per Second) | 400k | |
Number of Inputs | 4, 8 | |
Input Type | Differential, Pseudo-Differential, Single Ended | |
Data Interface | SPI | |
Configuration | S/H-ADC | |
Ratio - S/H:ADC | 1:1 | |
Number of A/D Converters | 1 | |
Architecture | SAR | |
Reference Type | External, Internal | |
Voltage - Supply, Analog | 5V | |
Voltage - Supply, Digital | 5V | |
Features | - | |
Operating Temperature | -40°C ~ 85°C | |

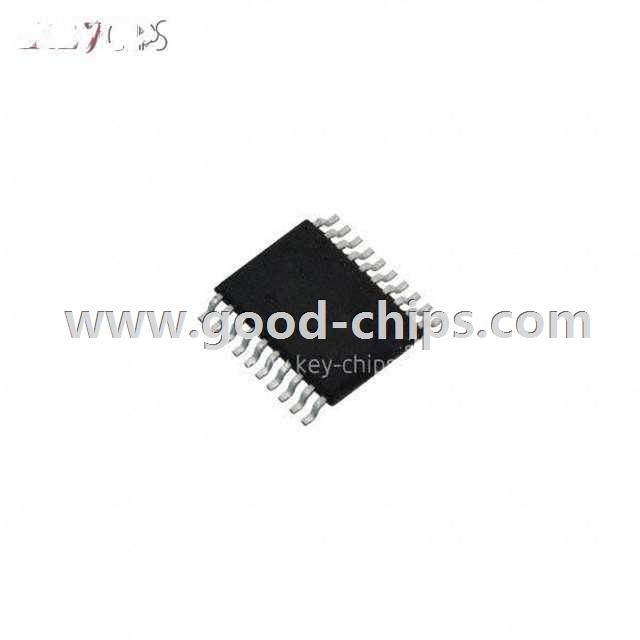

Package / Case | 20-TSSOP (0.173", 4.40mm Width) | |
Supplier Device Package | 20-TSSOP | |
Standard Package | 4,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AS1520-T | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AS1520-T is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS1520-T is new and unused, you can buy AS1520-T ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS1520-T.
