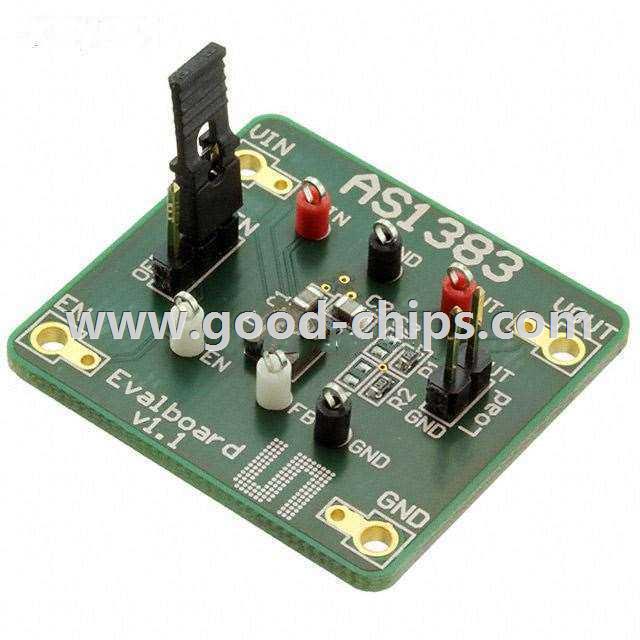

Manufacturer Part Number: | AS1383-WL-AD_EK_ST |
---|---|
Manufacturer: | ams |
Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
Available Quantity: | 9014 Pieces |
Unit Price: | Quote by Email |
Description: | AS1383 - DC/DC, Step Up 1, Non-Isolated Outputs Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AS1383-WL-AD_EK_ST Datasheet |
Internal Part Number | 898-AS1383-WL-AD_EK_ST | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | AS1383 Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
Manufacturer | ams | |
Series | - | |
Part Status | Active | |
Main Purpose | DC/DC, Step Up | |
Outputs and Type | 1, Non-Isolated | |
Power - Output | - | |
Voltage - Output | 2.7 V ~ 5 V | |
Current - Output | 200mA | |
Voltage - Input | 2.7 V ~ 5.5 V | |
Regulator Topology | Boost | |
Frequency - Switching | 3.5MHz | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | AS1383 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AS1383-WL-AD_EK_ST | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AS1383-WL-AD_EK_ST is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS1383-WL-AD_EK_ST is new and unused, you can buy AS1383-WL-AD_EK_ST ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS1383-WL-AD_EK_ST.
