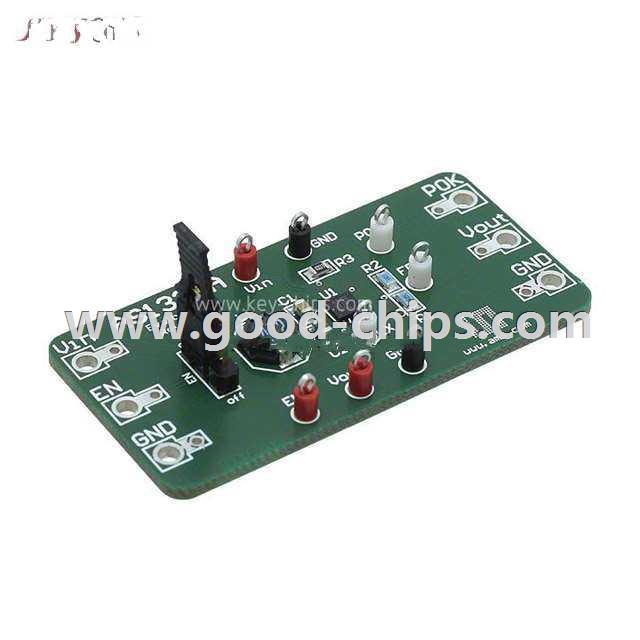

| Manufacturer Part Number: | AS1337A-TD_EK_ST |
|---|---|
| Manufacturer: | ams |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AS1337A - DC/DC, Step Up or Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AS1337A-TD_EK_ST Datasheet |
| Internal Part Number | 898-AS1337A-TD_EK_ST | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector | |
| Reference Design Library | AS1337A/B EB: 3.3V @ 200mA, 0.65 ~ 4.5V in | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | ams | |
| Series | - | |
| Part Status | Obsolete | |
| Main Purpose | DC/DC, Step Up or Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 3.3V | |
| Current - Output | 200mA | |
| Voltage - Input | 0.65 V ~ 4.5 V | |
| Regulator Topology | Boost, Buck | |
| Frequency - Switching | 1.2MHz | |
| Board Type | Fully Populated | |
| Supplied Contents | Board | |
| Utilized IC / Part | AS1337A | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AS1337A-TD_EK_ST | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AS1337A-TD_EK_ST is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS1337A-TD_EK_ST is new and unused, you can buy AS1337A-TD_EK_ST ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS1337A-TD_EK_ST.
