Manufacturer Part Number: | AS1110-QF_EK_ST |
---|---|
Manufacturer: | ams |
Product Category: | Evaluation Boards - LED Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

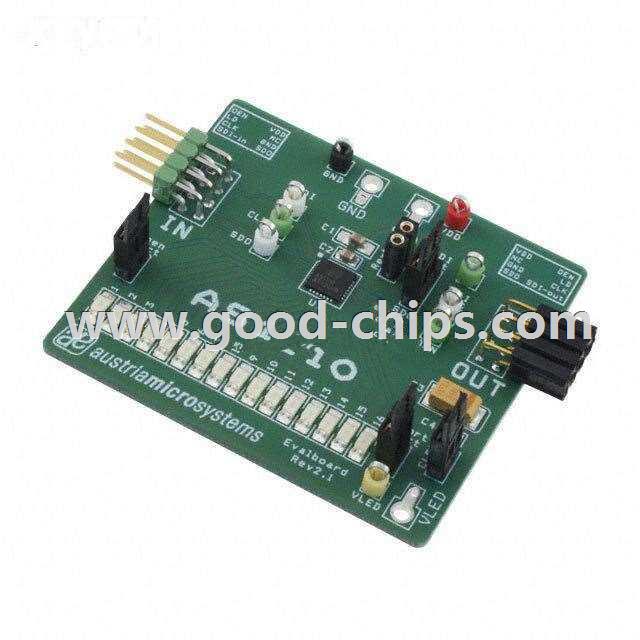

Description: | AS1110 16, Non-Isolated Output LED Driver Evaluation Board |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AS1110-QF_EK_ST Datasheet |
Internal Part Number | 898-AS1110-QF_EK_ST | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Development Tool Selector Lighting Product Selector | |
Reference Design Library | AS1110 EB: 16 Channel, 5 ~ 100mA/Ch, 3 ~ 5.5V in | |
Online Catalog | AS1110 Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - LED Drivers | |
Manufacturer | ams | |
Series | - | |
Part Status | Active | |
Current - Output / Channel | 100mA | |
Outputs and Type | 16, Non-Isolated | |
Voltage - Output | 15V | |
Features | Over-Temperature, Open-LED, Shorted-LED, Diagnostics | |
Voltage - Input | 3 V ~ 5.5 V | |
Supplied Contents | Board | |
Utilized IC / Part | AS1110 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AS1110-QF_EK_ST | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AS1110-QF_EK_ST is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS1110-QF_EK_ST is new and unused, you can buy AS1110-QF_EK_ST ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS1110-QF_EK_ST.
