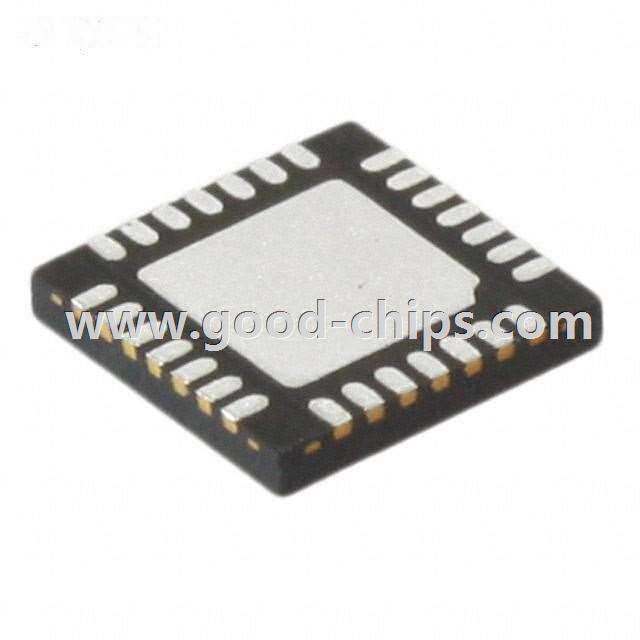

Manufacturer Part Number: | AS1110-BQFR |
---|---|
Manufacturer: | ams |
Product Category: | PMIC - LED Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | LED Driver IC 16 Output Linear Shift Register 100mA 28-QFN (5x5) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AS1110-BQFR Datasheet |
Internal Part Number | 898-AS1110-BQFR | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | Lighting Product Selector | |
Reference Design Library | AS1110 EB: 16 Channel, 5 ~ 100mA/Ch, 3 ~ 5.5V in | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - LED Drivers | |
Manufacturer | ams | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
Type | Linear | |
Topology | Shift Register | |
Internal Switch(s) | Yes | |
Number of Outputs | 16 | |
Voltage - Supply (Min) | 3V | |
Voltage - Supply (Max) | 5.5V | |
Voltage - Output | 15V | |
Current - Output / Channel | 100mA | |
Frequency | 50MHz | |
Dimming | - | |
Applications | Signage | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Mounting Type | Surface Mount | |
Package / Case | 28-WFQFN Exposed Pad | |
Supplier Device Package | 28-QFN (5x5) | |
Standard Package | 490 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AS1110-BQFR | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AS1110-BQFR is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS1110-BQFR is new and unused, you can buy AS1110-BQFR ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS1110-BQFR.
