| Manufacturer Part Number: | AS1109-QF_EK_ST |
|---|---|
| Manufacturer: | ams |
| Product Category: | Evaluation Boards - LED Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

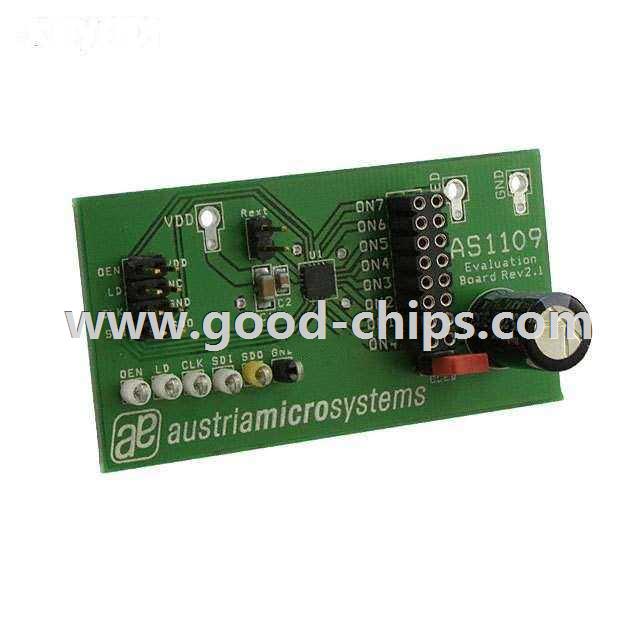

| Description: | AS1109 8, Non-Isolated Output LED Driver Evaluation Board |
| Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AS1109-QF_EK_ST Datasheet |
| Internal Part Number | 898-AS1109-QF_EK_ST | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector Lighting Product Selector | |
| Featured Product | AS1109 8-Bit LED Drivers | |
| Online Catalog | AS1109 Evaluation Board | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - LED Drivers | |
| Manufacturer | ams | |
| Series | - | |
| Part Status | Active | |
| Current - Output / Channel | 100mA | |
| Outputs and Type | 8, Non-Isolated | |
| Voltage - Output | 15V | |
| Features | Over-Temperature, Open-LED, Shorted-LED, Diagnostics | |
| Voltage - Input | 3 V ~ 5.5 V | |
| Supplied Contents | Board | |
| Utilized IC / Part | AS1109 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AS1109-QF_EK_ST | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AS1109-QF_EK_ST is in stock for immediate shipping now. We are the distributor of ams all series components. The condition of AS1109-QF_EK_ST is new and unused, you can buy AS1109-QF_EK_ST ams with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AS1109-QF_EK_ST.
