Manufacturer Part Number: | ARJ11B-MBSBQ-A-B-EMU2 |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | Modular Connectors - Jacks With Magnetics |
Available Quantity: | 9413 Pieces |
Unit Price: | Quote by Email |

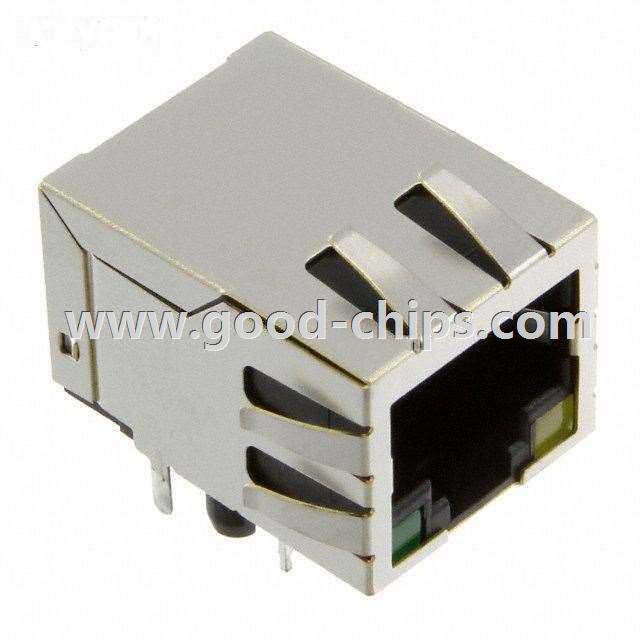

Description: | 1 Port RJ45 Magjack Connector Through Hole 10/100 Base-T, AutoMDIX |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ARJ11B-MBSBQ-A-B-EMU2 Datasheet |
Internal Part Number | 898-ARJ11B-MBSBQ-A-B-EMU2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | ARJ11B.pdf ARJ11B.stp | |
Category | Connectors, Interconnects | |
Family | Modular Connectors - Jacks With Magnetics | |
Manufacturer | Abracon LLC | |
Series | ARJ11B | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | RJ45 | |
Number of Ports | 1 | |
Number of Rows | 1 | |
Applications | 10/100 Base-T, AutoMDIX | |
Mounting Type | Through Hole | |
Orientation | 90° Angle (Right) | |
Termination | Solder | |
Height Above Board | 0.545" (13.84mm) | |
LED Color | Green - Yellow | |
Number of Cores per Jack | 4 | |
Shielding | Shielded, EMI Finger | |
Features | Board Lock | |
Tab Direction | Down | |
Contact Material | - | |
Contact Finish | Gold | |
Contact Finish Thickness | 6µin (0.152µm) | |
Shield Material | - | |
Housing Material | - | |
Operating Temperature | 0°C ~ 70°C | |
Standard Package | 60 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ARJ11B-MBSBQ-A-B-EMU2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ARJ11B-MBSBQ-A-B-EMU2 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of ARJ11B-MBSBQ-A-B-EMU2 is new and unused, you can buy ARJ11B-MBSBQ-A-B-EMU2 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ARJ11B-MBSBQ-A-B-EMU2.
