Manufacturer Part Number: | ARD00410 |
---|---|
Manufacturer: | Microchip Technology |
Product Category: | Evaluation Boards - LED Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

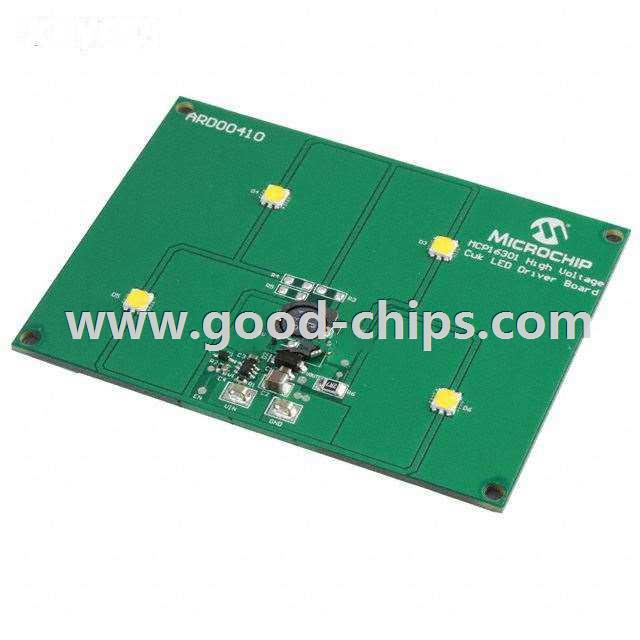

Description: | MCP16301 LED Driver Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | ARD00410 Datasheet |
Internal Part Number | 898-ARD00410 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | MCP16301 (ARD00410) BOM MCP16301 (ARD00410) Schematics MCP16301 (ARD00410) Gerber Files Development Tool Selector Lighting Product Selector | |
PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
Online Catalog | MCP16301 Evaluation Board | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - LED Drivers | |
Manufacturer | Microchip Technology | |
Series | - | |
Part Status | Active | |
Current - Output / Channel | 300mA | |
Outputs and Type | - | |
Voltage - Output | - | |
Features | Dimmable | |
Voltage - Input | 6 V ~ 18 V | |
Supplied Contents | Board | |
Utilized IC / Part | MCP16301 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | ARD00410 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
ARD00410 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ARD00410 is new and unused, you can buy ARD00410 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ARD00410.
