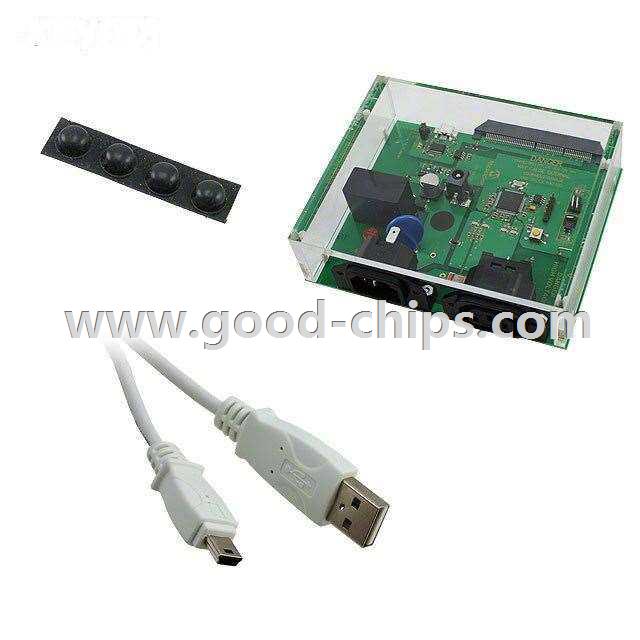

| Manufacturer Part Number: | ARD00330 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | Evaluation and Demonstration Boards and Kits |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | PIC18F87J72 PICtail™ Plus Series Power Management, Energy/Power Meter Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | ARD00330 Datasheet |
| Internal Part Number | 898-ARD00330 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Software Download | ARD00330 - Energy Monitoring/Metering GUI | |
| Design Resources | PIC18F87J72 Schematics ARD00330 - Firmware (ARD00280, ARD00330) Development Tool Selector | |
| Reference Design Library | ARD00330: Single Phase, 110~240VAC, USB GUI | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Category | Programmers, Development Systems | |
| Family | Evaluation and Demonstration Boards and Kits | |
| Manufacturer | Microchip Technology | |
| Series | PICtail™ Plus | |
| Part Status | Obsolete | |
| Main Purpose | Power Management, Energy/Power Meter | |
| Embedded | Yes, MCU, 8-Bit | |
| Utilized IC / Part | PIC18F87J72 | |
| Primary Attributes | Single Phase Shunt Energy Meter | |
| Secondary Attributes | - | |
| Supplied Contents | Board | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | ARD00330 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
ARD00330 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of ARD00330 is new and unused, you can buy ARD00330 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for ARD00330.
