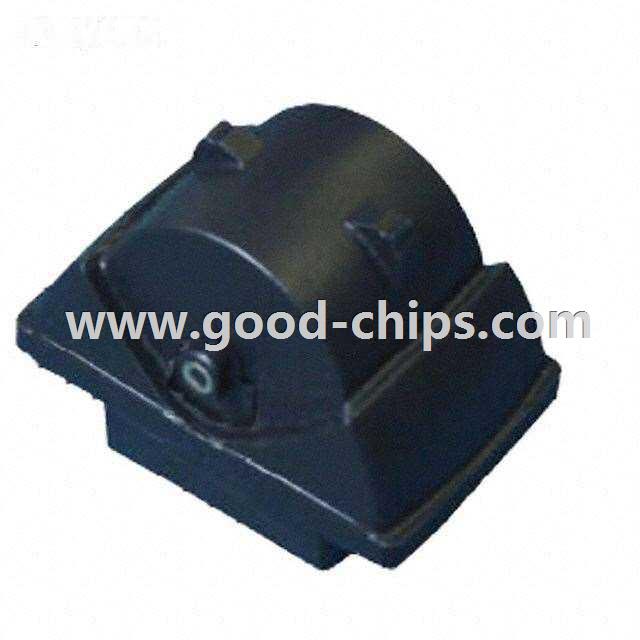

Manufacturer Part Number: | AR5S DTC RD |
---|---|
Manufacturer: | C&K Components |
Product Category: | Navigation Switches, Joystick |
Available Quantity: | 9012 Pieces |
Unit Price: | Quote by Email |
Description: | Thumbwheel, 1 - Axis Analog (Hall Effect) Output |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AR5S DTC RD Datasheet |
Internal Part Number | 898-AR5S DTC RD | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Introduction to Electromechanical Switches | |
Featured Product | Rugged Switch Family | |
Online Catalog | AR5 Series | |
Category | Switches | |
Family | Navigation Switches, Joystick | |
Manufacturer | C&K Components | |
Series | AR5 | |
Part Status | Active | |
Type | Thumbwheel, 1 - Axis | |
Actuator Type | Rocker | |
Switch Function | 2-Way Directional | |
Functions, Extra | - | |
Output | Analog (Hall Effect) | |
Voltage - Supply | 9 ~ 30VDC | |
Current Rating | - | |
Voltage Rating - AC | - | |
Voltage Rating - DC | - | |
Contact Material | - | |
Contact Finish | - | |
Mounting Type | Panel Mount | |
Termination Style | Solder Pad | |
Operating Temperature | -40°C ~ 85°C | |
Panel Cutout Dimensions | Rectangular - 36.80mm x 22.80mm | |
Ingress Protection | IP65 - Dust Tight, Water Resistant | |
Features | - | |
Mechanical Life | 2,000,000 Cycles | |
Electrical Life | - | |
Operating Force | 400gf | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AR5S DTC RD | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AR5S DTC RD is in stock for immediate shipping now. We are the distributor of C&K Components all series components. The condition of AR5S DTC RD is new and unused, you can buy AR5S DTC RD C&K Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AR5S DTC RD.
