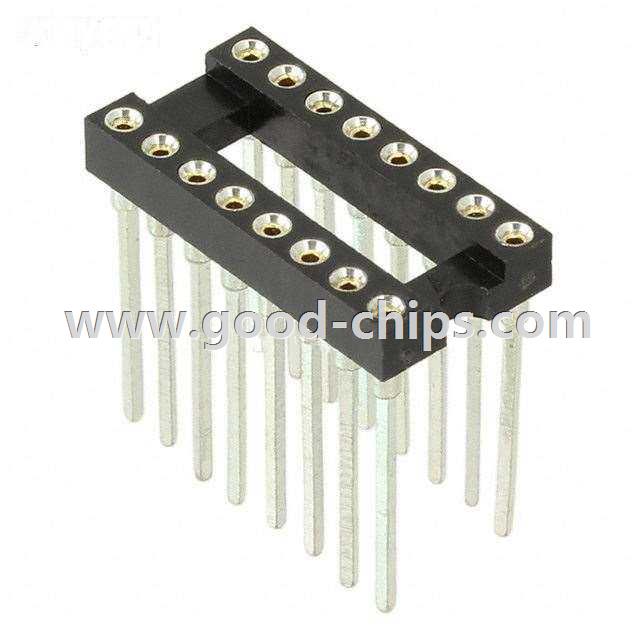

AR16-HZW/T

AR16-HZW/T
Manufacturer Part Number:AR16-HZW/T
Manufacturer:
Product Category:Sockets for ICs, Transistors
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:CONN IC DIP SOCKET 16POS GOLD
Lead Free Status / RoHS Status:Contains lead / RoHS non-compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):Obsolete / Discontinued
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: AR16-HZW/T Datasheet
AR16-HZW/T´s Parameters
Internal Part Number898-AR16-HZW/T
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
CategoryConnectors, Interconnects
FamilySockets for ICs, Transistors
ManufacturerAssmann WSW Components
Series-
PackagingTube
Part StatusObsolete
TypeDIP, 0.3" (7.62mm) Row Spacing
Number of Positions or Pins (Grid)16 (2 x 8)
Pitch - Mating0.100" (2.54mm)
Contact Finish - MatingGold
Contact Finish Thickness - Mating-
Contact Material - MatingBeryllium Copper
Mounting TypeThrough Hole
FeaturesOpen Frame
TerminationWire Wrap
Pitch - Post0.100" (2.54mm)
Contact Finish - PostTin
Contact Finish Thickness - Post200µin (5.08µm)
Contact Material - PostBeryllium Copper
Housing MaterialThermoplastic, Polyester
Operating Temperature-40°C ~ 105°C
Termination Post Length-
Material Flammability RatingUL94 V-0
Current Rating3A
Contact Resistance4 mOhm
Standard Package 29
Weight0.001 KG
ApplicationEmail for details
Replacement PartAR16-HZW/T
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

AR16-HZW/T is in stock for immediate shipping now. We are the distributor of Assmann WSW Components all series components. The condition of AR16-HZW/T is new and unused, you can buy AR16-HZW/T Assmann WSW Components with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for AR16-HZW/T.
