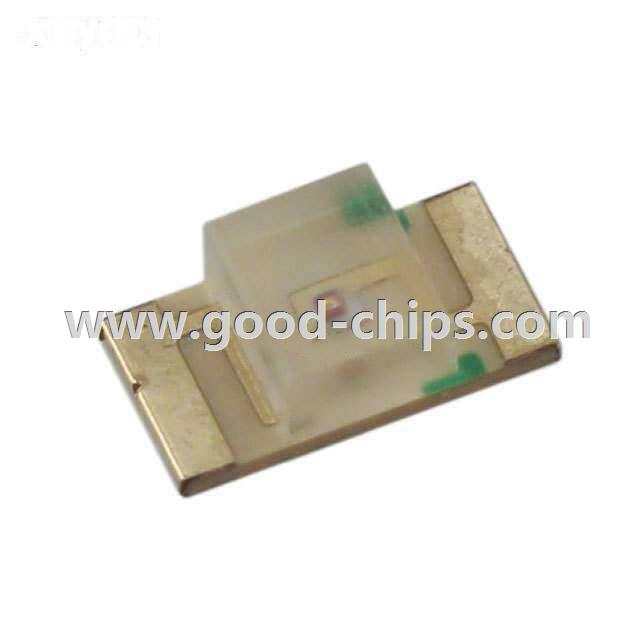

Manufacturer Part Number: | APTR3216YC |
---|---|
Manufacturer: | Kingbright |
Product Category: | LED Indication - Discrete |
Available Quantity: | 13010 Pieces |
Unit Price: | Quote by Email |
Description: | Yellow 588nm LED Indication - Discrete 2.1V 1206 (3216 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | APTR3216YC Datasheet |
Internal Part Number | 898-APTR3216YC | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | APTR3216x.sldprt APTR3216x.pro APTR3216x.igs APTR3216x.stp | |
Online Catalog | Reverse Mount Rectangle with Flat Top 1206 Package Chip LEDs | |
Category | Optoelectronics | |
Family | LED Indication - Discrete | |
Manufacturer | Kingbright | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Color | Yellow | |
Lens Color | Colorless | |
Lens Transparency | Clear | |
Millicandela Rating | 8mcd | |
Lens Style/Size | Rectangle with Flat Top, 1.40mm x 1.60mm | |
Voltage - Forward (Vf) (Typ) | 2.1V | |
Current - Test | 20mA | |
Viewing Angle | 120° | |
Mounting Type | Surface Mount, Bottom Entry | |
Wavelength - Dominant | 588nm | |
Wavelength - Peak | 590nm | |
Features | - | |
Package / Case | 1206 (3216 Metric) | |
Supplier Device Package | Chip LED | |
Size / Dimension | 3.20mm L x 1.60mm W | |
Height (Max) | 1.05mm | |
Standard Package | 2,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | APTR3216YC | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
APTR3216YC is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of APTR3216YC is new and unused, you can buy APTR3216YC Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTR3216YC.
