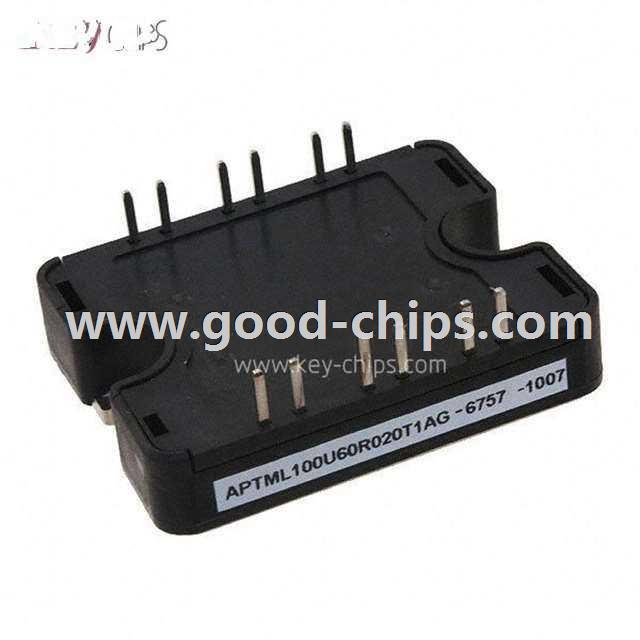

| Manufacturer Part Number: | APTML100U60R020T1AG |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9022 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 1000V 20A SP1 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTML100U60R020T1AG Datasheet |
| Internal Part Number | 898-APTML100U60R020T1AG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 1000V (1kV) | |
| Current - Continuous Drain (Id) @ 25°C | 20A | |
| Rds On (Max) @ Id, Vgs | 720 mOhm @ 10A, 10V | |
| Vgs(th) (Max) @ Id | 4V @ 2.5mA | |
| Gate Charge (Qg) @ Vgs | - | |
| Input Capacitance (Ciss) @ Vds | 6000pF @ 25V | |
| Power - Max | 520W | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP1 | |
| Supplier Device Package | SP1 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTML100U60R020T1AG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTML100U60R020T1AG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTML100U60R020T1AG is new and unused, you can buy APTML100U60R020T1AG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTML100U60R020T1AG.
