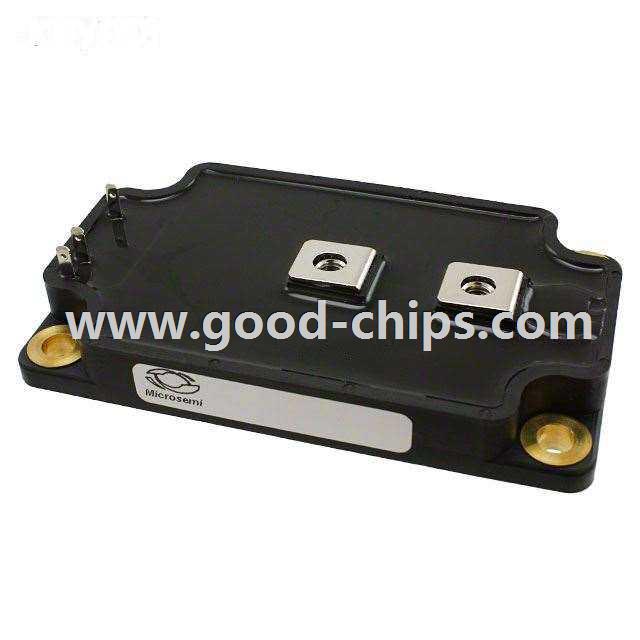

| Manufacturer Part Number: | APTM20UM03FAG |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET N-CH 200V 580A SP6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTM20UM03FAG Datasheet |
| Internal Part Number | 898-APTM20UM03FAG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | N-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Microsemi Corporation | |
| Series | POWER MOS 7® | |
| Packaging | Bulk | |
| Part Status | Active | |
| FET Type | MOSFET N-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 200V | |
| Current - Continuous Drain (Id) @ 25°C | 580A | |
| Rds On (Max) @ Id, Vgs | 3.6 mOhm @ 290A, 10V | |
| Vgs(th) (Max) @ Id | 5V @ 15mA | |
| Gate Charge (Qg) @ Vgs | 840nC @ 10V | |
| Input Capacitance (Ciss) @ Vds | 43300pF @ 25V | |
| Power - Max | 2270W | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP6 | |
| Supplier Device Package | SP6 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTM20UM03FAG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTM20UM03FAG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTM20UM03FAG is new and unused, you can buy APTM20UM03FAG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTM20UM03FAG.
