Manufacturer Part Number: | APTGT50DH120TG |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Transistors - IGBTs - Modules |
Available Quantity: | 9018 Pieces |
Unit Price: | Quote by Email |

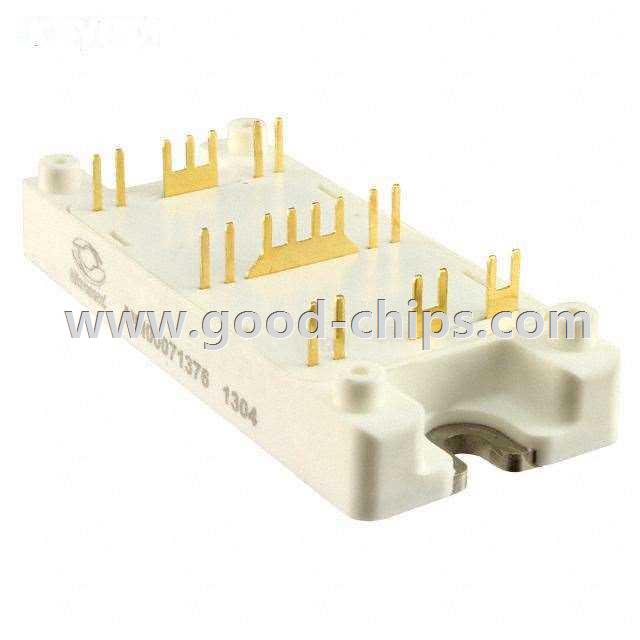

Description: | IGBT Module Trench Field Stop Asymmetrical Bridge 1200V 75A 277W Chassis Mount SP4 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | APTGT50DH120TG Datasheet |
Internal Part Number | 898-APTGT50DH120TG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | APT Asymmetrical Bridge Module Series | |
Category | Discrete Semiconductor Products | |
Family | Transistors - IGBTs - Modules | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Part Status | Active | |
IGBT Type | Trench Field Stop | |
Configuration | Asymmetrical Bridge | |
Voltage - Collector Emitter Breakdown (Max) | 1200V | |
Current - Collector (Ic) (Max) | 75A | |
Power - Max | 277W | |
Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 50A | |
Current - Collector Cutoff (Max) | 250µA | |
Input Capacitance (Cies) @ Vce | 3.6nF @ 25V | |
Input | Standard | |
NTC Thermistor | Yes | |
Mounting Type | Chassis Mount | |
Package / Case | SP4 | |
Supplier Device Package | SP4 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | APTGT50DH120TG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
APTGT50DH120TG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGT50DH120TG is new and unused, you can buy APTGT50DH120TG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGT50DH120TG.
