| Manufacturer Part Number: | APTGT200DU120G |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9052 Pieces |
| Unit Price: | Quote by Email |

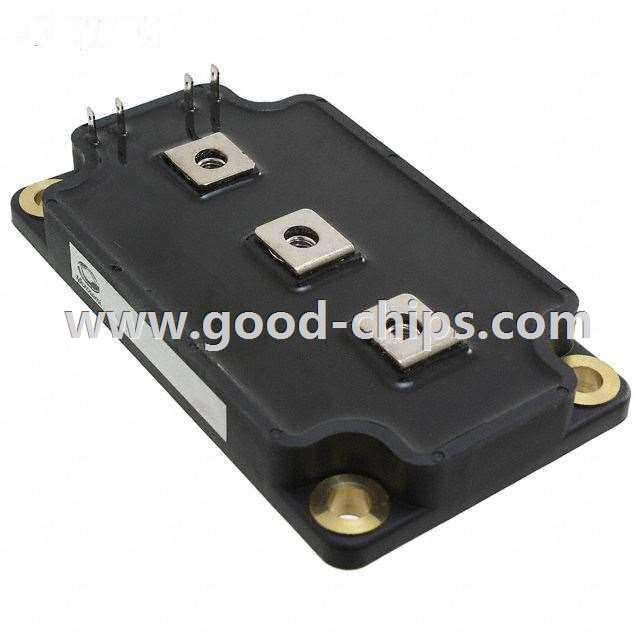

| Description: | IGBT Module Trench Field Stop Dual, Common Source 1200V 280A 890W Chassis Mount SP6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTGT200DU120G Datasheet |
| Internal Part Number | 898-APTGT200DU120G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | APT Dual Common Source Module Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Configuration | Dual, Common Source | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 280A | |
| Power - Max | 890W | |
| Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 200A | |
| Current - Collector Cutoff (Max) | 350µA | |
| Input Capacitance (Cies) @ Vce | 14nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | No | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP6 | |
| Supplier Device Package | SP6 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTGT200DU120G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTGT200DU120G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGT200DU120G is new and unused, you can buy APTGT200DU120G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGT200DU120G.
