Manufacturer Part Number: | APTGT100BB60T3G |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Transistors - IGBTs - Modules |
Available Quantity: | 9017 Pieces |
Unit Price: | Quote by Email |

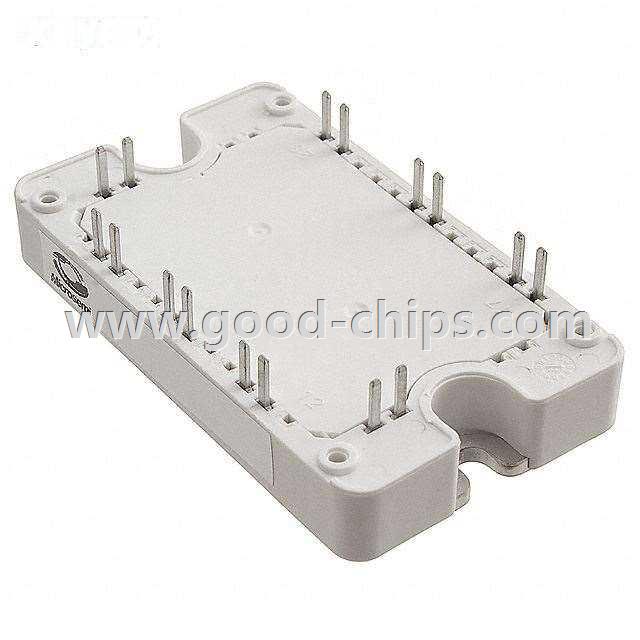

Description: | IGBT Module Trench Field Stop Half Bridge 600V 150A 340W Through Hole SP3 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | APTGT100BB60T3G Datasheet |
Internal Part Number | 898-APTGT100BB60T3G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | APT Boost Buck Chopper Trench + Field Stop IGBT3 Power Module | |
Category | Discrete Semiconductor Products | |
Family | Transistors - IGBTs - Modules | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Part Status | Active | |
IGBT Type | Trench Field Stop | |
Configuration | Half Bridge | |
Voltage - Collector Emitter Breakdown (Max) | 600V | |
Current - Collector (Ic) (Max) | 150A | |
Power - Max | 340W | |
Vce(on) (Max) @ Vge, Ic | 1.9V @ 15V, 100A | |
Current - Collector Cutoff (Max) | 250µA | |
Input Capacitance (Cies) @ Vce | 6.1nF @ 25V | |
Input | Standard | |
NTC Thermistor | Yes | |
Mounting Type | Through Hole | |
Package / Case | SP3 | |
Supplier Device Package | SP3 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | APTGT100BB60T3G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
APTGT100BB60T3G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGT100BB60T3G is new and unused, you can buy APTGT100BB60T3G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGT100BB60T3G.
