| Manufacturer Part Number: | APTGLQ100A120T3AG |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9011 Pieces |
| Unit Price: | Quote by Email |

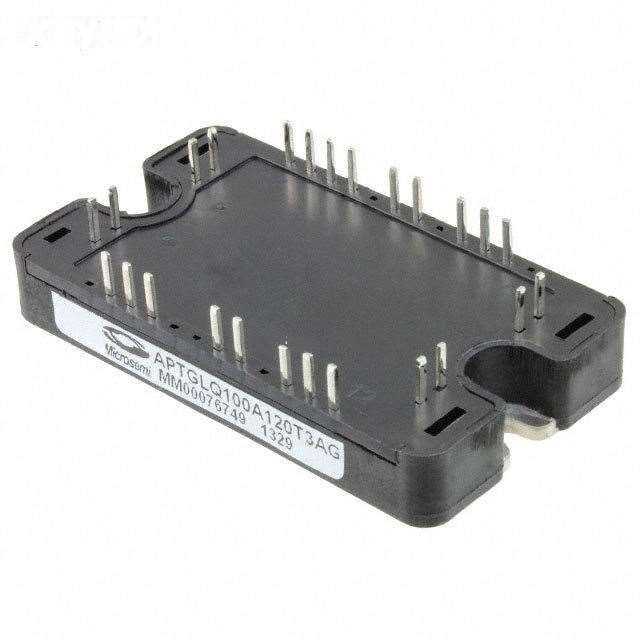

| Description: | IGBT Module Trench Field Stop Half Bridge 1200V 185A 650W Through Hole SP3 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTGLQ100A120T3AG Datasheet |
| Internal Part Number | 898-APTGLQ100A120T3AG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | SP3F Plastic Frame Update 16/Jul/2015 | |
| Online Catalog | APT Phase Leg Module Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Active | |
| IGBT Type | Trench Field Stop | |
| Configuration | Half Bridge | |
| Voltage - Collector Emitter Breakdown (Max) | 1200V | |
| Current - Collector (Ic) (Max) | 185A | |
| Power - Max | 650W | |
| Vce(on) (Max) @ Vge, Ic | 2.4V @ 15V, 100A | |
| Current - Collector Cutoff (Max) | 50µA | |
| Input Capacitance (Cies) @ Vce | 6.15nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | Yes | |
| Mounting Type | Through Hole | |
| Package / Case | SP3 | |
| Supplier Device Package | SP3 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTGLQ100A120T3AG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTGLQ100A120T3AG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGLQ100A120T3AG is new and unused, you can buy APTGLQ100A120T3AG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGLQ100A120T3AG.
