Manufacturer Part Number: | APTGL475U120DAG |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Transistors - IGBTs - Modules |
Available Quantity: | 9052 Pieces |
Unit Price: | Quote by Email |

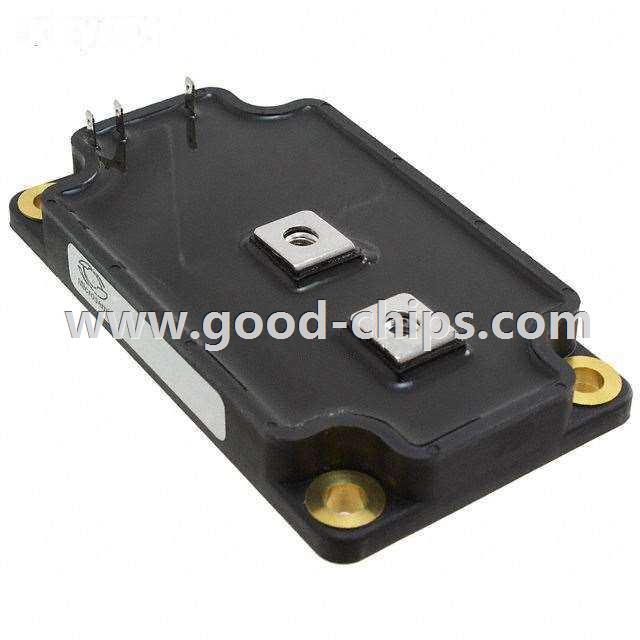

Description: | IGBT Module Trench Field Stop Single 1200V 610A 2307W Chassis Mount SP6 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | APTGL475U120DAG Datasheet |
Internal Part Number | 898-APTGL475U120DAG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | APT Single Switch Module Series | |
Category | Discrete Semiconductor Products | |
Family | Transistors - IGBTs - Modules | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Part Status | Active | |
IGBT Type | Trench Field Stop | |
Configuration | Single | |
Voltage - Collector Emitter Breakdown (Max) | 1200V | |
Current - Collector (Ic) (Max) | 610A | |
Power - Max | 2307W | |
Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 400A | |
Current - Collector Cutoff (Max) | 4mA | |
Input Capacitance (Cies) @ Vce | 24.6nF @ 25V | |
Input | Standard | |
NTC Thermistor | No | |
Mounting Type | Chassis Mount | |
Package / Case | SP6 | |
Supplier Device Package | SP6 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | APTGL475U120DAG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
APTGL475U120DAG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGL475U120DAG is new and unused, you can buy APTGL475U120DAG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGL475U120DAG.
