Manufacturer Part Number: | APTGL180A1202G |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Transistors - IGBTs - Modules |
Available Quantity: | 9020 Pieces |
Unit Price: | Quote by Email |

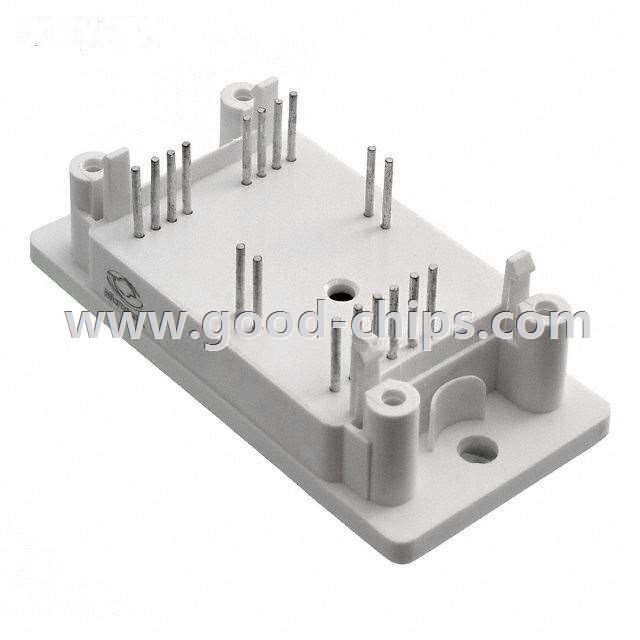

Description: | IGBT Module Trench Field Stop Half Bridge 1200V 220A 750W Chassis Mount SP2 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | APTGL180A1202G Datasheet |
Internal Part Number | 898-APTGL180A1202G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | APT Phase Leg Module Series | |
Category | Discrete Semiconductor Products | |
Family | Transistors - IGBTs - Modules | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Part Status | Active | |
IGBT Type | Trench Field Stop | |
Configuration | Half Bridge | |
Voltage - Collector Emitter Breakdown (Max) | 1200V | |
Current - Collector (Ic) (Max) | 220A | |
Power - Max | 750W | |
Vce(on) (Max) @ Vge, Ic | 2.2V @ 15V, 150A | |
Current - Collector Cutoff (Max) | 300µA | |
Input Capacitance (Cies) @ Vce | 9.3nF @ 25V | |
Input | Standard | |
NTC Thermistor | No | |
Mounting Type | Chassis Mount | |
Package / Case | SP2 | |
Supplier Device Package | SP2 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | APTGL180A1202G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
APTGL180A1202G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGL180A1202G is new and unused, you can buy APTGL180A1202G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGL180A1202G.
