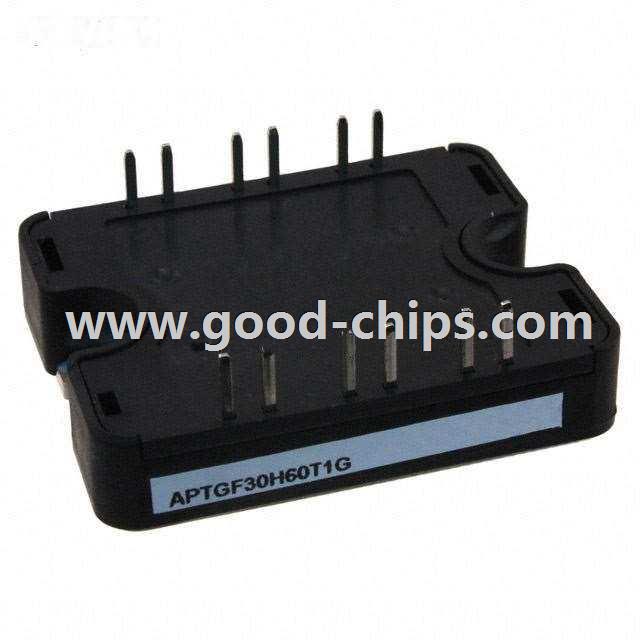

| Manufacturer Part Number: | APTGF30H60T1G |
|---|---|
| Manufacturer: | Microsemi Corporation |
| Product Category: | Transistors - IGBTs - Modules |
| Available Quantity: | 9036 Pieces |
| Unit Price: | Quote by Email |
| Description: | IGBT Module NPT Full Bridge Inverter 600V 42A 140W Chassis Mount SP1 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APTGF30H60T1G Datasheet |
| Internal Part Number | 898-APTGF30H60T1G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Part Status Change | Power Module Disc 23/Mar/2016 | |
| Online Catalog | APT Full Bridge Module Series | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - IGBTs - Modules | |
| Manufacturer | Microsemi Corporation | |
| Series | - | |
| Part Status | Not For New Designs | |
| IGBT Type | NPT | |
| Configuration | Full Bridge Inverter | |
| Voltage - Collector Emitter Breakdown (Max) | 600V | |
| Current - Collector (Ic) (Max) | 42A | |
| Power - Max | 140W | |
| Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 30A | |
| Current - Collector Cutoff (Max) | 250µA | |
| Input Capacitance (Cies) @ Vce | 1.35nF @ 25V | |
| Input | Standard | |
| NTC Thermistor | Yes | |
| Mounting Type | Chassis Mount | |
| Package / Case | SP1 | |
| Supplier Device Package | SP1 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APTGF30H60T1G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APTGF30H60T1G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGF30H60T1G is new and unused, you can buy APTGF30H60T1G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGF30H60T1G.
