Manufacturer Part Number: | APTGF165A60D1G |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Transistors - IGBTs - Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

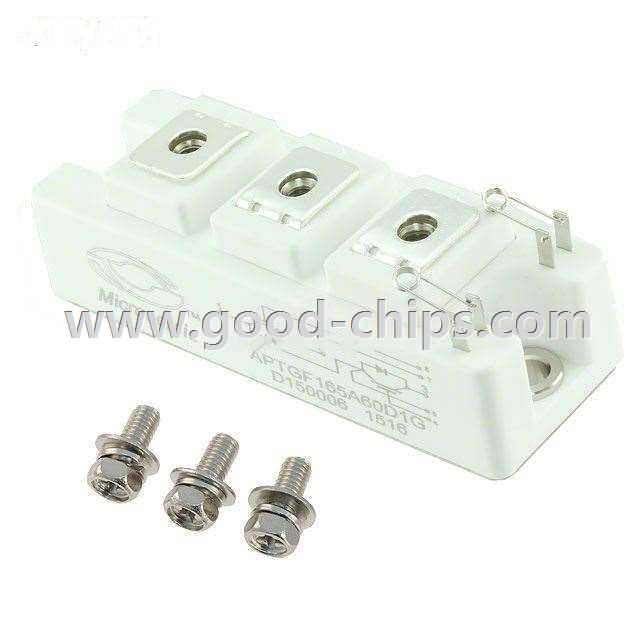

Description: | IGBT Module NPT Half Bridge 600V 230A 781W Chassis Mount D1 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | APTGF165A60D1G Datasheet |
Internal Part Number | 898-APTGF165A60D1G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | D1 Package Devices 12/Jun/2015 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - IGBTs - Modules | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Part Status | Obsolete | |
IGBT Type | NPT | |
Configuration | Half Bridge | |
Voltage - Collector Emitter Breakdown (Max) | 600V | |
Current - Collector (Ic) (Max) | 230A | |
Power - Max | 781W | |
Vce(on) (Max) @ Vge, Ic | 2.45V @ 15V, 200A | |
Current - Collector Cutoff (Max) | 250µA | |
Input Capacitance (Cies) @ Vce | 9nF @ 25V | |
Input | Standard | |
NTC Thermistor | No | |
Mounting Type | Chassis Mount | |
Package / Case | D1 | |
Supplier Device Package | D1 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | APTGF165A60D1G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
APTGF165A60D1G is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APTGF165A60D1G is new and unused, you can buy APTGF165A60D1G Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APTGF165A60D1G.
