Manufacturer Part Number: | APT75GN120LG |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Transistors - IGBTs - Single |
Available Quantity: | 9622 Pieces |
Unit Price: | Quote by Email |

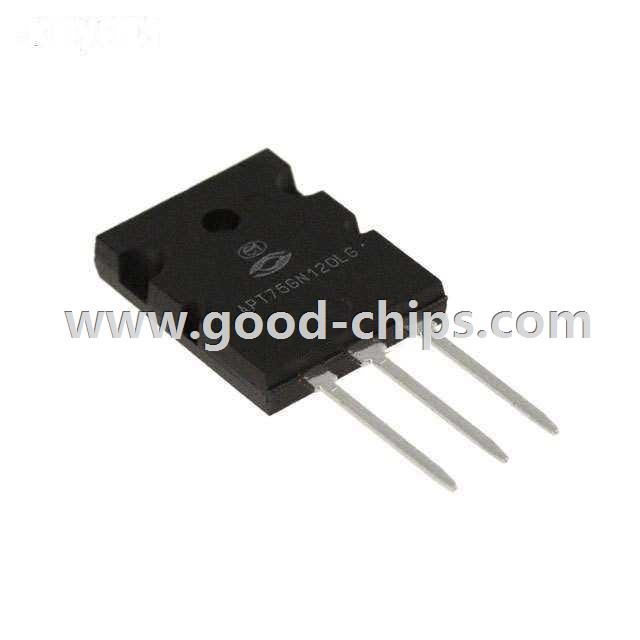

Description: | IGBT Trench Field Stop 1200V 200A 833W Through Hole TO-264 [L] |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | APT75GN120LG Datasheet |
Internal Part Number | 898-APT75GN120LG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Standard IGBTs | |
Category | Discrete Semiconductor Products | |
Family | Transistors - IGBTs - Single | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
IGBT Type | Trench Field Stop | |
Voltage - Collector Emitter Breakdown (Max) | 1200V | |
Current - Collector (Ic) (Max) | 200A | |
Current - Collector Pulsed (Icm) | 225A | |
Vce(on) (Max) @ Vge, Ic | 2.1V @ 15V, 75A | |
Power - Max | 833W | |
Switching Energy | 8620µJ (on), 11400µJ (off) | |
Input Type | Standard | |
Gate Charge | 425nC | |
Td (on/off) @ 25°C | 60ns/620ns | |
Test Condition | 800V, 75A, 1 Ohm, 15V | |
Reverse Recovery Time (trr) | - | |
Package / Case | TO-264-3, TO-264AA | |
Mounting Type | Through Hole | |
Supplier Device Package | TO-264 [L] | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | APT75GN120LG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
APT75GN120LG is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APT75GN120LG is new and unused, you can buy APT75GN120LG Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APT75GN120LG.
