Manufacturer Part Number: | APT3216LSYCK/J3-PRV |
---|---|
Manufacturer: | Kingbright |
Product Category: | LED Indication - Discrete |
Available Quantity: | 10775 Pieces |
Unit Price: | Quote by Email |
Description: | Yellow 590nm LED Indication - Discrete 1.85V 1206 (3216 Metric) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | APT3216LSYCK/J3-PRV Datasheet |
Internal Part Number | 898-APT3216LSYCK/J3-PRV | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
3D Model | APT3216x.sldprt APT3216x.pro APT3216x.igs APT3216x.stp | |
Online Catalog | 1206 Rectangle with Flat Top Chip LEDs | |
Category | Optoelectronics | |
Family | LED Indication - Discrete | |
Manufacturer | Kingbright | |
Series | HELI2 | |
Packaging | Cut Tape (CT) | |
Part Status | Active | |
Color | Yellow | |
Lens Color | Colorless | |
Lens Transparency | Clear | |
Millicandela Rating | 25mcd | |
Lens Style/Size | Rectangle with Flat Top, 1.90mm x 1.60mm | |
Voltage - Forward (Vf) (Typ) | 1.85V | |
Current - Test | 2mA | |
Viewing Angle | 120° | |
Mounting Type | Surface Mount | |
Wavelength - Dominant | 590nm | |
Wavelength - Peak | 590nm | |
Features | - | |

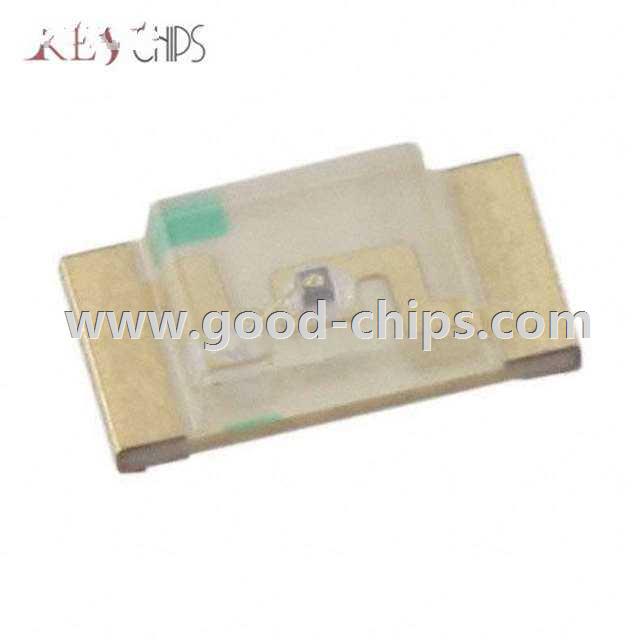

Package / Case | 1206 (3216 Metric) | |
Supplier Device Package | 2-SMD | |
Size / Dimension | 3.20mm L x 1.60mm W | |
Height (Max) | 0.75mm | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | APT3216LSYCK/J3-PRV | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
APT3216LSYCK/J3-PRV is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of APT3216LSYCK/J3-PRV is new and unused, you can buy APT3216LSYCK/J3-PRV Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APT3216LSYCK/J3-PRV.
