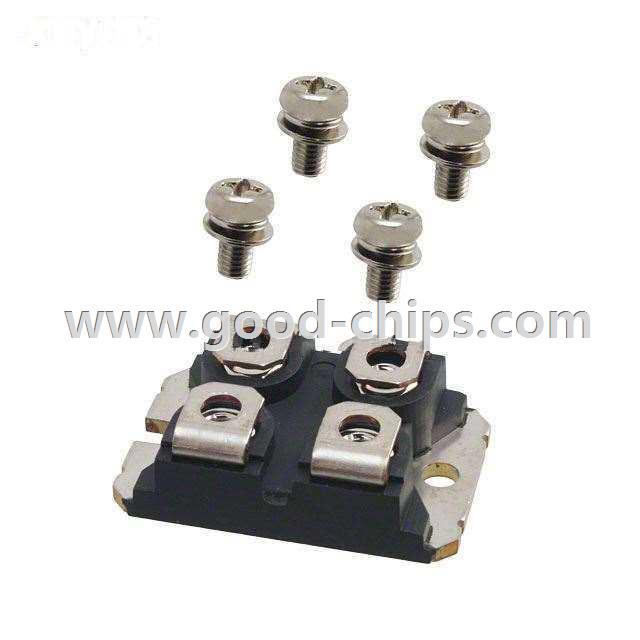

Manufacturer Part Number: | APT2X61S20J |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Diodes - Rectifiers - Arrays |
Available Quantity: | 9061 Pieces |
Unit Price: | Quote by Email |
Description: | Diode Array 2 Independent Schottky 200V 75A Chassis Mount ISOTOP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | APT2X61S20J Datasheet |
Internal Part Number | 898-APT2X61S20J | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | Schottky Diode Array | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Arrays | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Diode Configuration | 2 Independent | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 200V | |
Current - Average Rectified (Io) (per Diode) | 75A | |
Voltage - Forward (Vf) (Max) @ If | 900mV @ 60A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | 55ns | |
Current - Reverse Leakage @ Vr | 1mA @ 200V | |
Mounting Type | Chassis Mount | |
Package / Case | ISOTOP | |
Supplier Device Package | ISOTOP® | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | APT2X61S20J | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
APT2X61S20J is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of APT2X61S20J is new and unused, you can buy APT2X61S20J Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APT2X61S20J.
