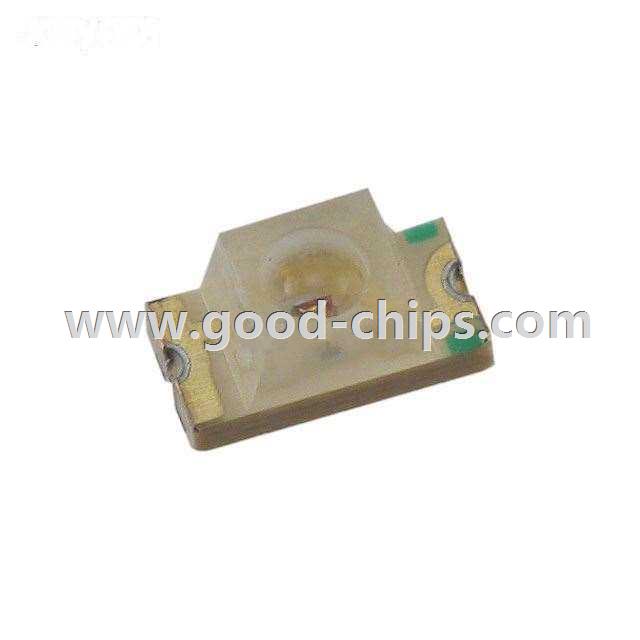

| Manufacturer Part Number: | APL3015SURCK-F01 |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 19010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red 630nm LED Indication - Discrete 1.95V 2-SMD, No Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APL3015SURCK-F01 Datasheet |
| Internal Part Number | 898-APL3015SURCK-F01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | APL3015x.sldprt APL3015x.pro APL3015x.igs APL3015x.stp | |
| Online Catalog | 3.0mm x 1.5mm Rectangle with Flat Top LEDs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Red | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 180mcd | |
| Lens Style/Size | Round with Flat Top, 0.18mm | |
| Voltage - Forward (Vf) (Typ) | 1.95V | |
| Current - Test | 20mA | |
| Viewing Angle | 70° | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | 630nm | |
| Wavelength - Peak | 645nm | |
| Features | - | |
| Package / Case | 2-SMD, No Lead | |
| Supplier Device Package | Chip LED | |
| Size / Dimension | 3.00mm L x 1.50mm W | |
| Height (Max) | 1.40mm | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APL3015SURCK-F01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APL3015SURCK-F01 is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of APL3015SURCK-F01 is new and unused, you can buy APL3015SURCK-F01 Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APL3015SURCK-F01.
