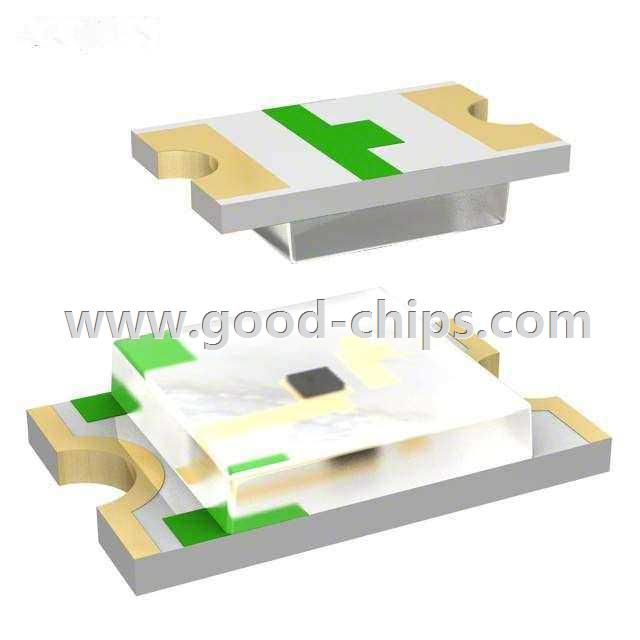

| Manufacturer Part Number: | APHCM2012QBC/D-F01 |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Blue 465nm LED Indication - Discrete 3.3V 0805 (2012 Metric) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APHCM2012QBC/D-F01 Datasheet |
| Internal Part Number | 898-APHCM2012QBC/D-F01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | APHBM2012x.sldprt APHBM2012x.pro APHBM2012x.igs APHBM2012x.stp | |
| Online Catalog | Low Profile 2.0mm x 1.25mm Rectangle with Flat Top 0805 Package Chip LEDs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Blue | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 100mcd | |
| Lens Style/Size | Rectangle with Flat Top, 1.30mm x 1.25mm | |
| Voltage - Forward (Vf) (Typ) | 3.3V | |
| Current - Test | 20mA | |
| Viewing Angle | 110° | |
| Mounting Type | Surface Mount | |
| Wavelength - Dominant | 465nm | |
| Wavelength - Peak | 460nm | |
| Features | - | |
| Package / Case | 0805 (2012 Metric) | |
| Supplier Device Package | Chip LED | |
| Size / Dimension | 2.00mm L x 1.25mm W | |
| Height (Max) | 0.40mm | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APHCM2012QBC/D-F01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APHCM2012QBC/D-F01 is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of APHCM2012QBC/D-F01 is new and unused, you can buy APHCM2012QBC/D-F01 Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APHCM2012QBC/D-F01.
