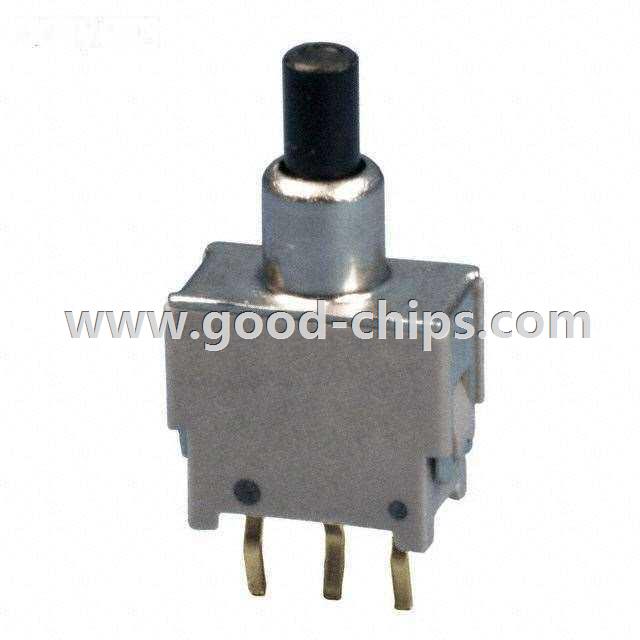

| Manufacturer Part Number: | APE1F-2M-10-Z |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 9819 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPDT Standard Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APE1F-2M-10-Z Datasheet |
| Internal Part Number | 898-APE1F-2M-10-Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | 3D CAD Models Pushbutton Switch | |
| Featured Product | Pushbuttons | |
| 3D Model | APE1F-2M-10-Z | |
| Online Catalog | APE Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | APE | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Standard | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 50mA (AC/DC) | |
| Voltage Rating - AC | 60V | |
| Voltage Rating - DC | 60V | |
| Actuator Type | Plunger for Cap | |
| Color - Actuator/Cap | Black | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Through Hole | |
| Termination Style | PC Pin | |
| Ingress Protection | - | |
| Features | Sealed - Fully | |
| Panel Cutout Dimensions | - | |
| Operating Temperature | -20°C ~ 85°C | |
| Mechanical Life | - | |
| Electrical Life | 10,000 Cycles | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APE1F-2M-10-Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APE1F-2M-10-Z is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of APE1F-2M-10-Z is new and unused, you can buy APE1F-2M-10-Z Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APE1F-2M-10-Z.
