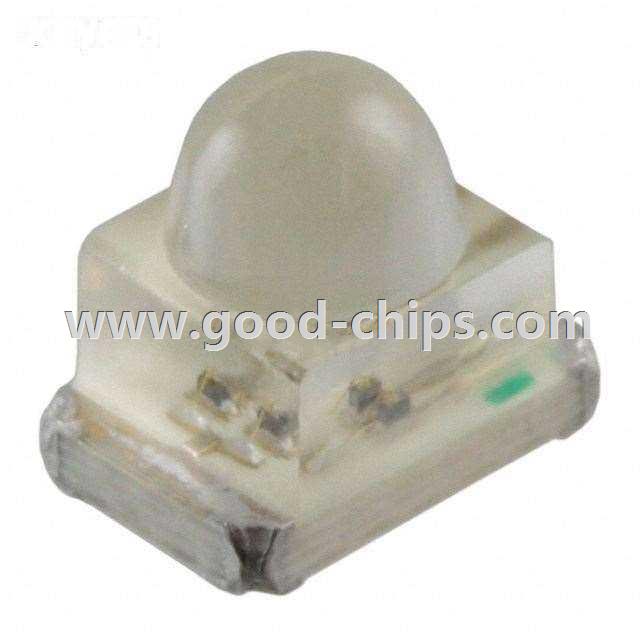

| Manufacturer Part Number: | APBDA3020QBDCGKC-GX |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 10005 Pieces |
| Unit Price: | Quote by Email |
| Description: | Blue, Green 465nm Blue, 570nm Green LED Indication - Discrete 3.3V Blue, 2.1V Green 3-SMD, No Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APBDA3020QBDCGKC-GX Datasheet |
| Internal Part Number | 898-APBDA3020QBDCGKC-GX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | APBDA3020x.sldprt APBDA3020x.pro APBDA3020x.igs APBDA3020x.stp | |
| Online Catalog | Right Angle Bi-Color Round with Domed Top LEDs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Cut Tape (CT) | |
| Part Status | Active | |
| Color | Blue, Green | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 300mcd Blue, 300mcd Green | |
| Lens Style/Size | Round with Domed Top, 1.90mm | |
| Voltage - Forward (Vf) (Typ) | 3.3V Blue, 2.1V Green | |
| Current - Test | 20mA Blue, 20mA Green | |
| Viewing Angle | 15° | |
| Mounting Type | Surface Mount, Right Angle | |
| Wavelength - Dominant | 465nm Blue, 570nm Green | |
| Wavelength - Peak | 460nm Blue, 574nm Green | |
| Features | - | |
| Package / Case | 3-SMD, No Lead | |
| Supplier Device Package | 3-SMD | |
| Size / Dimension | 3.00mm L x 2.80mm W | |
| Height (Max) | 2.00mm | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APBDA3020QBDCGKC-GX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APBDA3020QBDCGKC-GX is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of APBDA3020QBDCGKC-GX is new and unused, you can buy APBDA3020QBDCGKC-GX Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APBDA3020QBDCGKC-GX.
