| Manufacturer Part Number: | APBA3010EYC-GX |
|---|---|
| Manufacturer: | Kingbright |
| Product Category: | LED Indication - Discrete |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Red, Yellow 617nm Red, 588nm Yellow LED Indication - Discrete 2V Red, 2.1V Yellow 3-SMD, No Lead |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APBA3010EYC-GX Datasheet |
| Internal Part Number | 898-APBA3010EYC-GX | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| 3D Model | APBA3010x.sldprt APBA3010x.pro APBA3010x.igs APBA3010x.stp | |

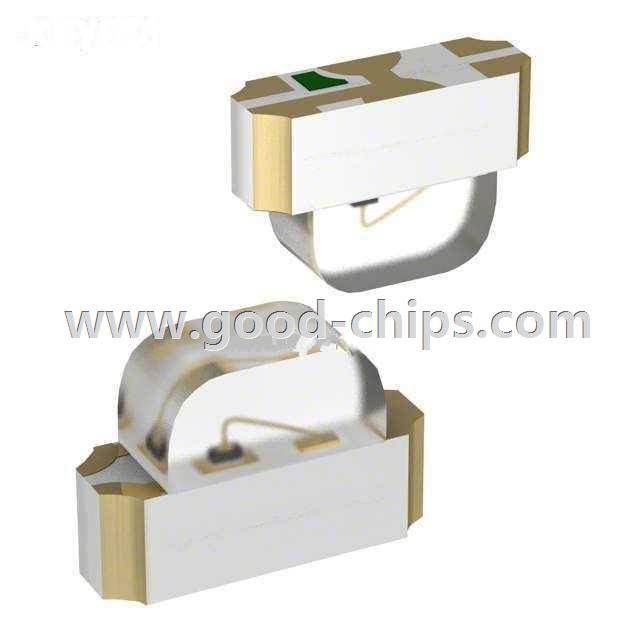

| Online Catalog | Right Angle Bi-Color Rectangle with Domed Top 1208 Package LEDs | |
| Category | Optoelectronics | |
| Family | LED Indication - Discrete | |
| Manufacturer | Kingbright | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Color | Red, Yellow | |
| Lens Color | Colorless | |
| Lens Transparency | Clear | |
| Millicandela Rating | 8mcd Red, 8mcd Yellow | |
| Lens Style/Size | Rectangle with Domed Top, 2.00mm x 1.00mm | |
| Voltage - Forward (Vf) (Typ) | 2V Red, 2.1V Yellow | |
| Current - Test | 20mA Red, 20mA Yellow | |
| Viewing Angle | 140° | |
| Mounting Type | Surface Mount, Right Angle | |
| Wavelength - Dominant | 617nm Red, 588nm Yellow | |
| Wavelength - Peak | 627nm Red, 590nm Yellow | |
| Features | - | |
| Package / Case | 3-SMD, No Lead | |
| Supplier Device Package | Chip LED | |
| Size / Dimension | 3.00mm L x 2.00mm W | |
| Height (Max) | 1.00mm | |
| Standard Package | 2,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APBA3010EYC-GX | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APBA3010EYC-GX is in stock for immediate shipping now. We are the distributor of Kingbright all series components. The condition of APBA3010EYC-GX is new and unused, you can buy APBA3010EYC-GX Kingbright with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APBA3010EYC-GX.
