| Manufacturer Part Number: | APAMPS-105 |
|---|---|
| Manufacturer: | Abracon LLC |
| Product Category: | RF Antennas |
| Available Quantity: | 9012 Pieces |
| Unit Price: | Quote by Email |

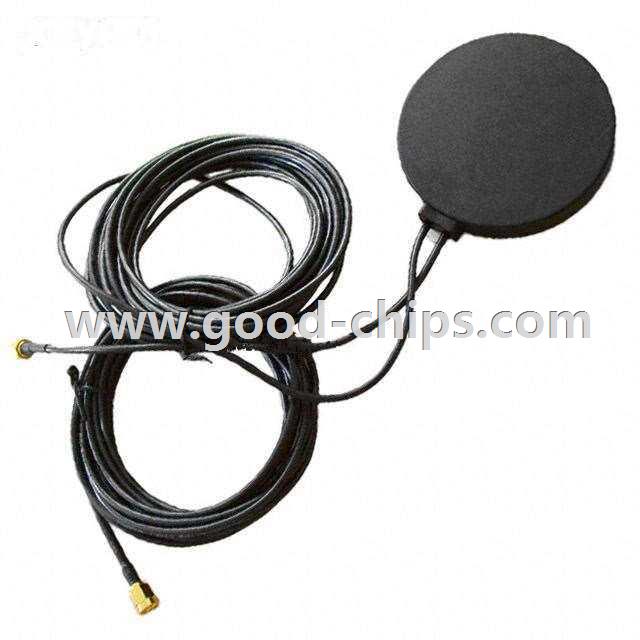

| Description: | 1.575GHz GPS, GSM Puck RF Antenna 1.574GHz ~ 1.576GHz 5dBic Connector, SMA Male Adhesive |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | APAMPS-105 Datasheet |
| Internal Part Number | 898-APAMPS-105 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | External Antenna Series | |
| Design Resources | IoT Product Selector | |
| Featured Product | APAM Series Antennas | |
| 3D Model | APAMS-105.pdf APAMS-105.stp | |
| Online Catalog | Abracon Corporation - External | |
| Category | RF/IF and RFID | |
| Family | RF Antennas | |
| Manufacturer | Abracon LLC | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Active | |
| Frequency Group | UHF (1 GHz ~ 2 GHz) | |
| Frequency (Center/Band) | 1.575GHz | |
| Frequency Range | 1.574GHz ~ 1.576GHz | |
| Antenna Type | Puck | |
| Number of Bands | 1 | |
| VSWR | 1.5 | |
| Return Loss | -26dB | |
| Gain | 5dBic | |
| Power - Max | - | |
| Features | - | |
| Termination | Connector, SMA Male | |
| Ingress Protection | - | |
| Mounting Type | Adhesive | |
| Height (Max) | 0.622" (15.80mm) | |
| Applications | GPS, GSM | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | APAMPS-105 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
APAMPS-105 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of APAMPS-105 is new and unused, you can buy APAMPS-105 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APAMPS-105.
