Manufacturer Part Number: | APAMP-109 |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | RF Antennas |
Available Quantity: | 9082 Pieces |
Unit Price: | Quote by Email |

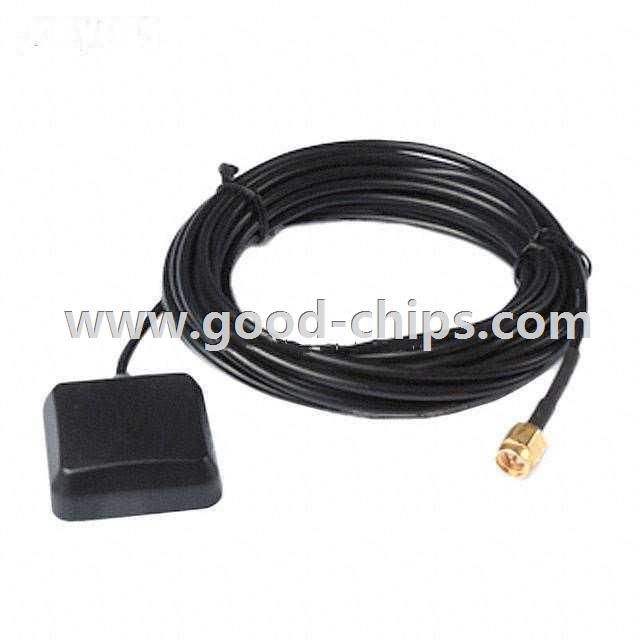

Description: | 1.575GHz GPS Module RF Antenna 1.574GHz ~ 1.576GHz 5dBic Connector, SMA Male Adhesive |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | APAMP-109 Datasheet |
Internal Part Number | 898-APAMP-109 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | External Antenna Series | |
Design Resources | IoT Product Selector | |
Featured Product | APAM Series Antennas | |
Online Catalog | Abracon Corporation - External | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Abracon LLC | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Frequency Group | UHF (1 GHz ~ 2 GHz) | |
Frequency (Center/Band) | 1.575GHz | |
Frequency Range | 1.574GHz ~ 1.576GHz | |
Antenna Type | Module | |
Number of Bands | 1 | |
VSWR | 1.5 | |
Return Loss | -32dB | |
Gain | 5dBic | |
Power - Max | - | |
Features | - | |
Termination | Connector, SMA Male | |
Ingress Protection | - | |
Mounting Type | Adhesive | |
Height (Max) | 0.594" (15.10mm) | |
Applications | GPS | |
Standard Package | 25 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | APAMP-109 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
APAMP-109 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of APAMP-109 is new and unused, you can buy APAMP-109 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APAMP-109.
