Manufacturer Part Number: | APAM2764YK0175 |
---|---|
Manufacturer: | Abracon LLC |
Product Category: | RF Antennas |
Available Quantity: | 9180 Pieces |
Unit Price: | Quote by Email |

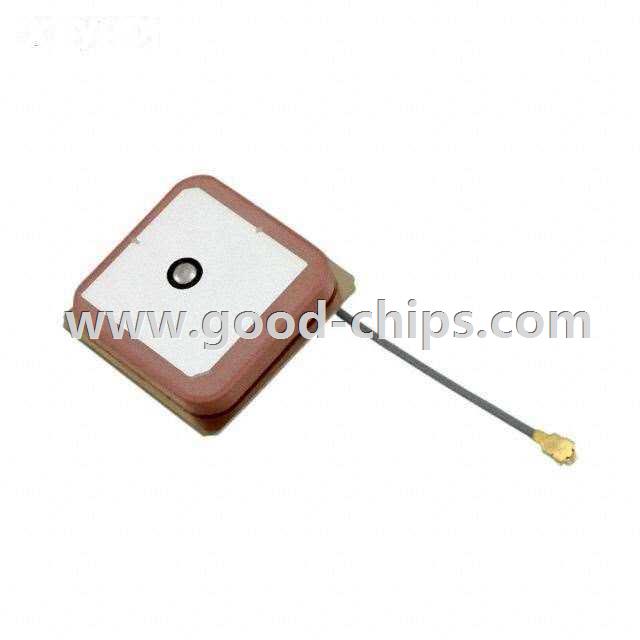

Description: | 1.575GHz GPS Ceramic Patch RF Antenna 1.573GHz ~ 1.577GHz 2.5dBic Connector, IPEX Surface Mount |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | APAM2764YK0175 Datasheet |
Internal Part Number | 898-APAM2764YK0175 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
Featured Product | APAM Series Antennas | |
3D Model | APAM2764YK0175.pdf APAM2764YK0175.stp | |
Online Catalog | Abracon Corporation - Embedded | |
Category | RF/IF and RFID | |
Family | RF Antennas | |
Manufacturer | Abracon LLC | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
Frequency Group | UHF (1 GHz ~ 2 GHz) | |
Frequency (Center/Band) | 1.575GHz | |
Frequency Range | 1.573GHz ~ 1.577GHz | |
Antenna Type | Ceramic Patch | |
Number of Bands | 1 | |
VSWR | 1.5 | |
Return Loss | - | |
Gain | 2.5dBic | |
Power - Max | - | |
Features | - | |
Termination | Connector, IPEX | |
Ingress Protection | - | |
Mounting Type | Surface Mount | |
Height (Max) | 0.276" (7.00mm) | |
Applications | GPS | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | APAM2764YK0175 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
APAM2764YK0175 is in stock for immediate shipping now. We are the distributor of Abracon LLC all series components. The condition of APAM2764YK0175 is new and unused, you can buy APAM2764YK0175 Abracon LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for APAM2764YK0175.
