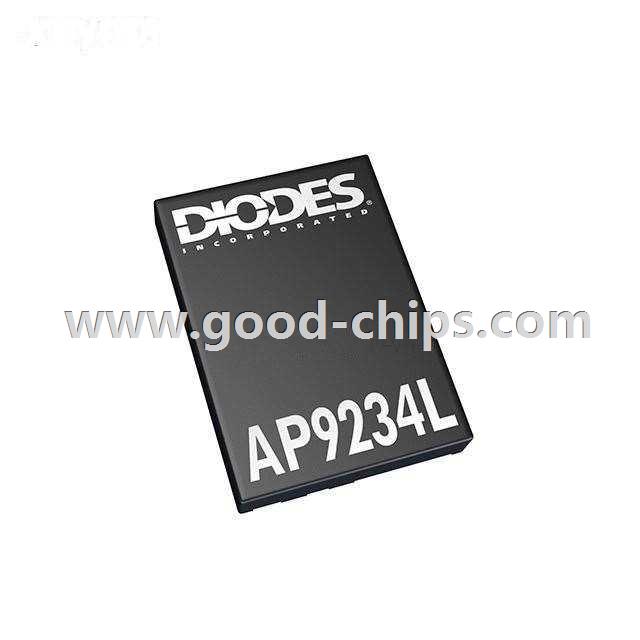

Manufacturer Part Number: | AP9234LA-AO-HSB-7 |
---|---|
Manufacturer: | Diodes Incorporated |
Product Category: | PMIC - Battery Management |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Battery Battery Protection IC Lithium-Ion/Polymer U-DFN2535-6 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AP9234LA-AO-HSB-7 Datasheet |
Internal Part Number | 898-AP9234LA-AO-HSB-7 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | AP9234L High-Accuracy, Single-Chip Solution for 1-Cell Lithium Battery Protection | |
Online Catalog | Over/Under Voltage Protection | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Battery Management | |
Manufacturer | Diodes Incorporated | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Function | Battery Protection | |
Battery Chemistry | Lithium-Ion/Polymer | |
Number of Cells | 1 | |
Fault Protection | Over Current, Over Voltage | |
Interface | - | |
Operating Temperature | -40°C ~ 85°C (TA) | |
Package / Case | 6-UDFN Exposed Pad | |
Supplier Device Package | U-DFN2535-6 | |
Drawing Number | 31; U-DFN2535-6 Type B; ; 6 | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AP9234LA-AO-HSB-7 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AP9234LA-AO-HSB-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AP9234LA-AO-HSB-7 is new and unused, you can buy AP9234LA-AO-HSB-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP9234LA-AO-HSB-7.
