| Manufacturer Part Number: | AP8802FNG-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output DC DC Regulator Step-Down (Buck) Analog, PWM Dimming 1A (Switch) DFN3030-10 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AP8802FNG-7 Datasheet |
| Internal Part Number | 898-AP8802FNG-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | RoHS Cert of Compliance | |
| Design Resources | Lighting Product Selector | |
| Featured Product | LED Driver Solutions AP880X Series Step-Down DC/DC Converter | |
| Online Catalog | DC DC Regulator | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | DC DC Regulator | |
| Topology | Step-Down (Buck) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 8V | |
| Voltage - Supply (Max) | 48V | |
| Voltage - Output | - | |
| Current - Output / Channel | 1A (Switch) | |
| Frequency | 700kHz | |
| Dimming | Analog, PWM | |
| Applications | Backlight, Lighting | |
| Operating Temperature | -40°C ~ 105°C (TA) | |
| Mounting Type | Surface Mount | |

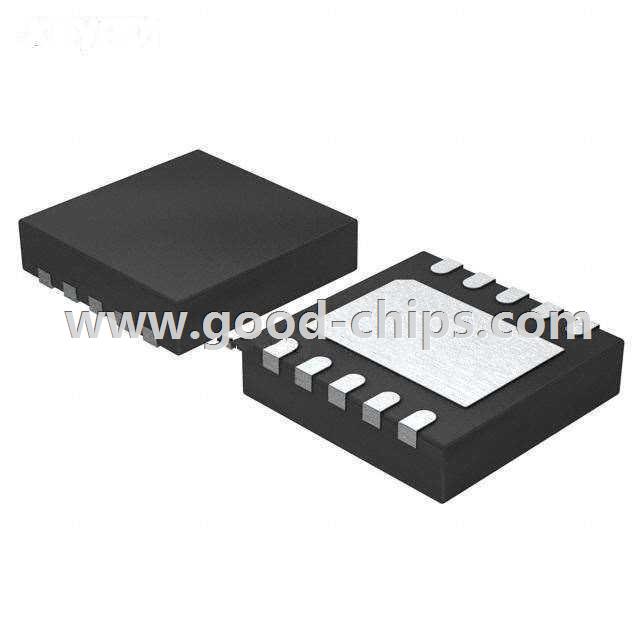

| Package / Case | 10-UFDFN Exposed Pad | |
| Supplier Device Package | DFN3030-10 | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AP8802FNG-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AP8802FNG-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AP8802FNG-7 is new and unused, you can buy AP8802FNG-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP8802FNG-7.
