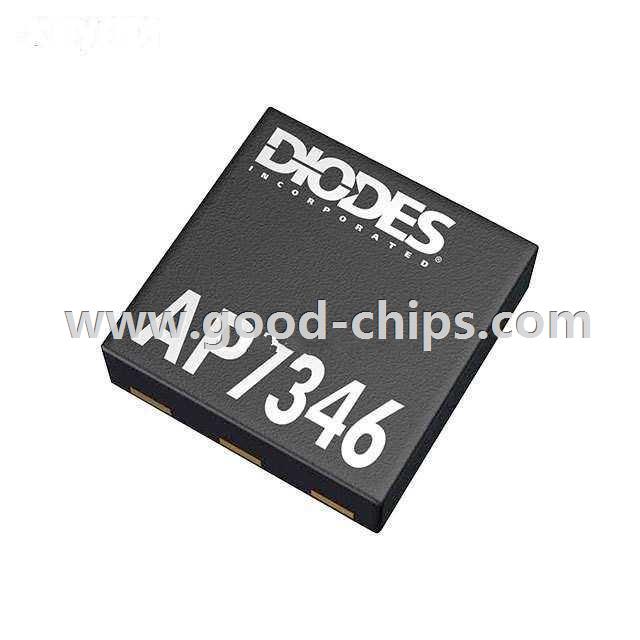

| Manufacturer Part Number: | AP7346D-1218FS6-7 |
|---|---|
| Manufacturer: | Diodes Incorporated |
| Product Category: | PMIC - Voltage Regulators - Linear |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Linear Voltage Regulator IC Positive Fixed 2 Output 1.2V, 1.8V 130mA X2-DFN1212-6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | AP7346D-1218FS6-7 Datasheet |
| Internal Part Number | 898-AP7346D-1218FS6-7 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | AP7346 Dual LDO Regulator | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Voltage Regulators - Linear | |
| Manufacturer | Diodes Incorporated | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Regulator Topology | Positive Fixed | |
| Voltage - Output | 1.2V, 1.8V | |
| Current - Output | 130mA | |
| Voltage - Dropout (Typical) | 0.48V @ 120mA, 0.3V @ 120mA | |
| Number of Regulators | 2 | |
| Voltage - Input | 1.7 V ~ 5.25 V | |
| Current - Limit (Min) | - | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-XFDFN Exposed Pad | |
| Supplier Device Package | X2-DFN1212-6 | |
| Standard Package | 5,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | AP7346D-1218FS6-7 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
AP7346D-1218FS6-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AP7346D-1218FS6-7 is new and unused, you can buy AP7346D-1218FS6-7 Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP7346D-1218FS6-7.
