Manufacturer Part Number: | AP7343D-09FS4-7B |
---|---|
Manufacturer: | Diodes Incorporated |
Product Category: | PMIC - Voltage Regulators - Linear |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Linear Voltage Regulator IC Positive Fixed 1 Output 0.9V 300mA X2-DFN1010-4 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | AP7343D-09FS4-7B Datasheet |
Internal Part Number | 898-AP7343D-09FS4-7B | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Featured Product | AP7343 Low Dropout Regulator | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Voltage Regulators - Linear | |
Manufacturer | Diodes Incorporated | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Regulator Topology | Positive Fixed | |
Voltage - Output | 0.9V | |
Current - Output | 300mA | |
Voltage - Dropout (Typical) | 0.51V @ 300mA | |
Number of Regulators | 1 | |
Voltage - Input | 1.7 V ~ 5.25 V | |
Current - Limit (Min) | - | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |
Package / Case | 4-XDFN Exposed Pad | |

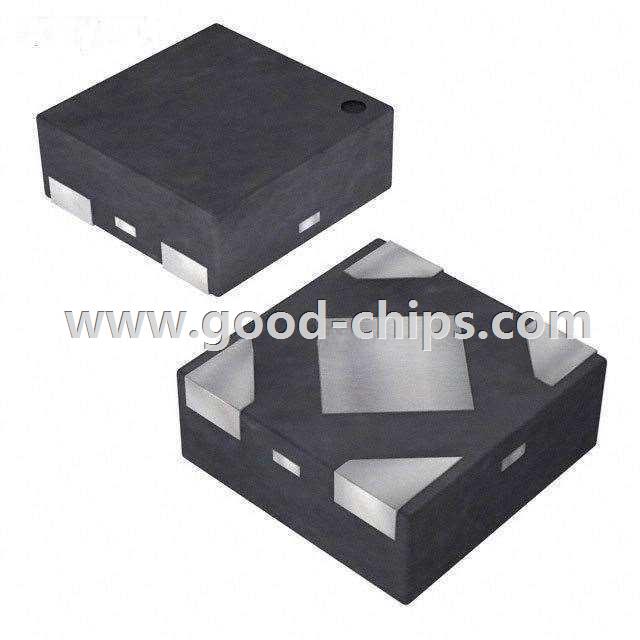

Supplier Device Package | X2-DFN1010-4 | |
Standard Package | 10,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | AP7343D-09FS4-7B | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
AP7343D-09FS4-7B is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AP7343D-09FS4-7B is new and unused, you can buy AP7343D-09FS4-7B Diodes Incorporated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for AP7343D-09FS4-7B.
