AP7331-15SNG-7

AP7331-15SNG-7
Manufacturer Part Number:AP7331-15SNG-7
Manufacturer:
Product Category:PMIC - Voltage Regulators - Linear
Available Quantity:9010 Pieces
Unit Price:Quote by Email
Description:Linear Voltage Regulator IC Positive Fixed 1 Output 1.5V 300mA 6-DFN2020 (2x2)
Lead Free Status / RoHS Status:Lead free / RoHS Compliant
Moisture Sensitivity Level (MSL):1 (Unlimited)
Production Status (Lifecycle):In Production
Delivery Time:1-2 Days
Date Code (D/C):New
Datasheet Download: AP7331-15SNG-7 Datasheet
AP7331-15SNG-7´s Parameters
Internal Part Number898-AP7331-15SNG-7
Manufacturer Lead time6-8 weeks
ConditionNew & Unused, Original Sealed
RoHS InformationRoHS Cert of Compliance
CategoryIntegrated Circuits (ICs)
FamilyPMIC - Voltage Regulators - Linear
ManufacturerDiodes Incorporated
Series-
PackagingTape & Reel (TR)
Part StatusActive
Regulator TopologyPositive Fixed
Voltage - Output1.5V
Current - Output300mA
Voltage - Dropout (Typical)-
Number of Regulators1
Voltage - Input2 V ~ 6 V
Current - Limit (Min)400mA
Operating Temperature-40°C ~ 85°C
Mounting TypeSurface Mount

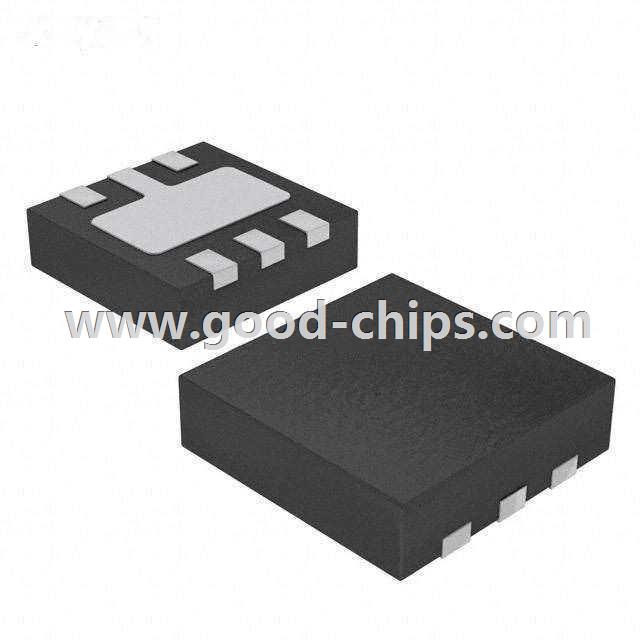

Package / Case6-UDFN Exposed Pad
Supplier Device Package6-DFN2020 (2x2)
Standard Package 3,000
Weight0.001 KG
ApplicationEmail for details
Replacement PartAP7331-15SNG-7
Country of OriginUSA / JAPAN / Philippines / Malaysia
MOQ1 Piece
Picture / Image / PhotoSend via email

AP7331-15SNG-7 is in stock for immediate shipping now. We are the distributor of Diodes Incorporated all series components. The condition of AP7331-15SNG-7 is new and unused, you can buy AP7331-15SNG-7 Diodes Incorporated with us at a very low price and quick delivery.

Please kindly send us an email if you have any demands for AP7331-15SNG-7.
